Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0101U-CA4P
Certification :
FCC, CE, CB, RoHS,UL
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Suggested Resolution :
1280*800 WXGA
Contrast Ratio (Typ.) :
800:1
Touch input :
USB
Support Colors :
16.2M
Response Time :
16s
Storage Temp. :
-20～60°C
Touch Test :
≥50,000,000 times
Product name :
PCAP Touch Monitor
Description

10.1 Inch PCAP Touch Monitor Open frame Touch Display for Kiosks

Description of 10.1 capacitive touch screen

This 10.1 capacitive touch screen comes with main features as below: 1280*800 high resolution, 800:1 contrast ratio, vandal proof and dust-proof with wide viewing angle. The PCAP touch monitor provides VGA and HDMI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor, high-quality and durable, which can be normally used in harsh environment. Also, customized services can be offered.

Specification of PCAP Touch Monitor

Complete Machine
Model No. KOT-0101U-CA4P(KOT-101P-002)
Type OT
Display Type 16:10 Ratio 10.1＂TFT-LCD, LED backlight
Active Area 216.96*135.6(mm)
Monitor Dimensions (W*H*D) 259.5*182.5*50(mm)
Suggested Resolution 1280*800 WXGA
Support Colors 16.2M
Brightness (Typ.) Pure LCD Panel 300cd/m2
With Touch Monitor 255cd/m2
Response Time (Typ.) 16ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 85°/85°
Vertical(up/down) 85°/85°
Contrast Ratio (Typ.) 800:1
Video Input VGA/HDMI
Frequency (H/V) 30～80KHz / 60～75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

 Operating Temp. 0～50°C
Operating RH 20%～80%
Storage RH 10%～90%
MTBF ≥ 50,000 hours
LED Back Light Life (Typ.) ≥ 50,000 hours
Weight(N.W/G.W) 1.85Kg(1 pcs)4.5Kg(2pcs in one package)
Package dimensions 332*220*285mm(2pcs in one package)
Power Consumption Standby Power: ≤1W Operating Power: ≤13W
Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount

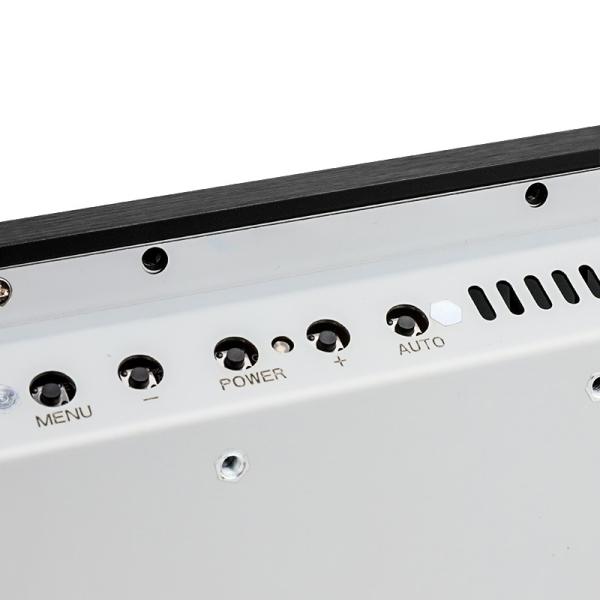

OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year
Touch Screen
Touch Type 10.1" capacitive touch screens
Touch input USB
Hardness 6H
Light Transmittance >85%
Support System WIN7,WIN8,WIN10support 10points, XP support single point
Active Area 216.96*135.6(mm)
Thickness 3.75±0.2(mm)
Touch Test ≥ 50,000,000 times
Input Voltage DC 5V±5%

10.1 capacitive touch screen Mechanical Dimensions

Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks

Applications

  • Retail
  • Gaming
  • Kiosk
  • self-service
  • Finance
  • Transit
  • Conference
  • Education
  • Healthcare
  • public service
  • e-commerce
  • Hotels
  • restaurants

Open Frame Touch PCAP Monitor 10.1 Inch Touch Display 16.2M For Kiosks

Advantages of PCAP Touch Monitor

1. High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.

2. Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.

3. Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.

4. Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.

5. Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
