High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0104U-CA4PH (KOT-104P-010)
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton
Series :
OT
Display Type :
4:3 Ratio 10.4" TFT-LCD
Suggested Resolution :
1024*768 @ 60Hz
Support Colors :
16.2M
Response Time :
16ms
Contrast Ratio (Typ.) :
1000:1
Video Input :
VGA/DVI
Frequency (H/V) :
30～80KHz / 60～75Hz
Description

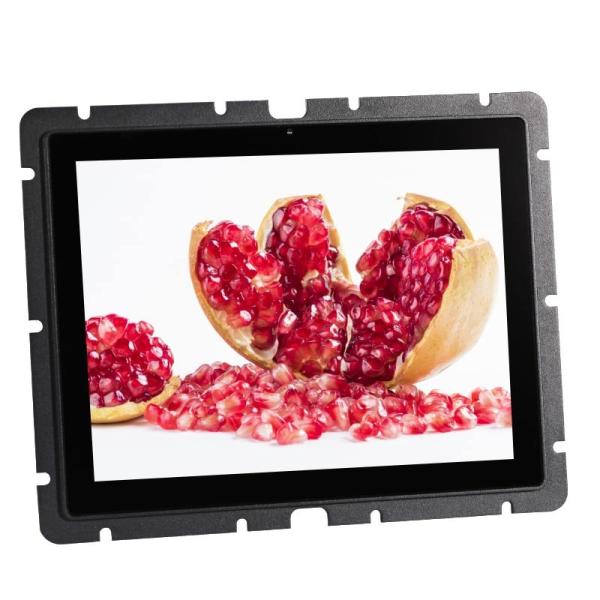

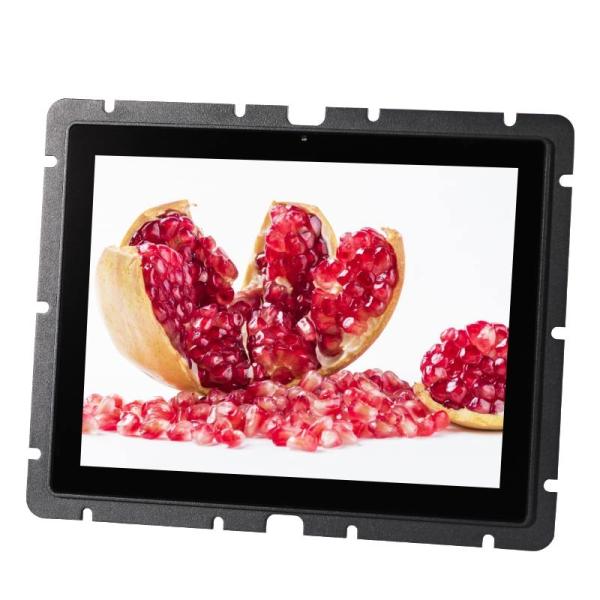

10.4 Inch High Brightness Touch Monitor 1500 Nits For Outdoor Use

High Brightness Touch Monitor Main Features

  • KeeTouch PCAP touch screen, multi-touch points, great interactive experience
  • High brightness, visible under direct sunlight
  • 1000:1 high contrast ratio, high image quality with broad viewing angle
  • Anti-vandal high brightness touch monitor
  • VGA & DVI interfaces, USB for touch
  • Support system: XP, WIN7, WIN8, WIN10, Linux, Android
  • Other sizes are optional (7’’- 43’’)

High Brightness Touch Monitor Specifications

Complete Machine
Model No. KOT-0104U-CA4PH (P/N:KOT-104P-011)
Series OT
Display Type 4:3 Ratio 10.4" TFT-LCD
Active Area 213*160.2(mm)
Monitor Dimensions (W*H*D) 276.4*219.4*43.5(mm)
Suggested Resolution 1024*768 @ 60Hz
Support Colors 16.2M
Brightness (Typ.) Pure LCD Panel ≥1500cd/m2
With Touch Monitor ≥1240cd/m2
Response Time (Typ.) 16ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 80°/80°
Vertical(up/down) 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/DVI
Frequency (H/V) 30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. -15～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥ 30,000 Hours
LED Back Light Life (Typ.) ≥ 30,000 Hours
Power Consumption Standby Power: ≤1.5W / Operating Power: ≤18W
Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount
Weight(N.W/G.W) 2.2Kg(1pcs) /6.4Kg(2pcs in one package)
Package dimensions 350*221*298(mm)(2pcs in one package)
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 10.4" capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 6H
Light Transmittance >80%
Support System

Multi-Touch : WIN7,WIN8,WIN10

Single Touch : XP
Active Area 215.6*163(mm)
Thickness 3.75±0.2mm
Touch Test ≥ 50,000,000 次
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

High Brightness Touch Monitor Mechanical Dimensions

High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved

Products Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

High Brightness 10.4 Inch Outdoor Touch Monitor 1500Nits ETL Approved

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the high brightness touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
