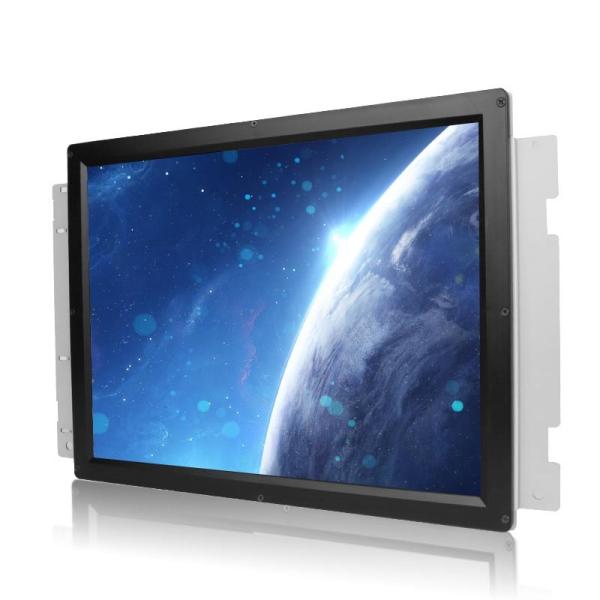

1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-150P-017-02
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Series :
OT
Display Type :
4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area :
304.1x 228.1(mm)
Suggested Resolution :
1024*768 @ 60Hz
Support Colors :
16.2M
Response Time (Typ.) :
6ms
Contrast Ratio (Typ.) :
450(Min.), 800(Typ.)
Video Input :
VGA/DVI
Input (line) voltage :
100-240V/AC, 50-60Hz
Frequency (H/V) :
30～80KHz / 60～75Hz
Description

15 Inch PCAP Touch Monitor 1024x768 Resolution For Kiosks

PCAP Touch Monitor Main Features

  • With PCAP touch technology, up to 10 points touch with great touch experience
  • High resolution and high contrast support high quality image
  • Anti-vandal and dust-proof PCAP touch monitor
  • VGA&DVI interfaces, USB port for touch
  • Multiple mounting options include VESA mount, horizontal and vertical brackets mount
  • Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
  • Other sizes (7’’- 43’’) can be offered.

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0150U-SA4BW(P/N:KOT-150P-017-02)
Series OT
Display Type 4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area 304.1x 228.1(mm)
Monitor Dimensions (W*H*D) 398*268*56.3(mm)
Suggested Resolution 1024*768 @ 60Hz
Support Colors 16.2M
Brightness (Typ.) Pure LCD Panel 400cd/m2
With Touch Monitor 190cd/m2
Response Time (Typ.) 6ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right): 80°/80°
Vertical(up/down): 65°/80°
Contrast Ratio (Typ.) 450(Min.), 800(Typ.)
Video Input VGA/DVI
Frequency (H/V) 30～80KHz / 60～75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 V/AC, 50-60 Hz

Environment

 Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 hours
LED Back Light Life (Typ.) ≥30,000 hours
Weight(N.W/G.W) 3.3Kg(1 pcs) / 7.75Kg(2pcs in one package)
Package dimensions 445*200*390(mm)(2pcs in one package)
Power Consumption Standby Power: ≤1.5W Operating Power: ≤10.3W
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 15" Capacitive touch screens
Touch input USB
Response Time ≤8ms
Hardness 6H
Light Transmittance ≥85%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area (305±0.3)x (229±0.3)(mm)
Thickness 4±0.25(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

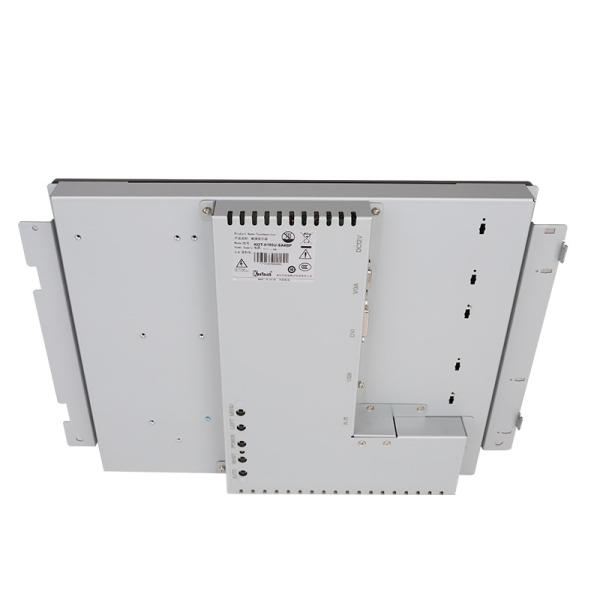

PCAP Touch Monitor Mechanical Dimensions

1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

1024x768 Resolution PCAP 15 Inch Touch Monitor For Kiosks

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
