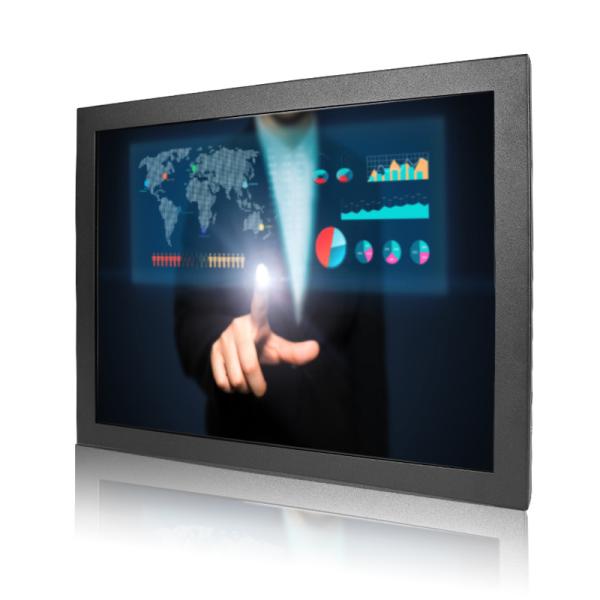

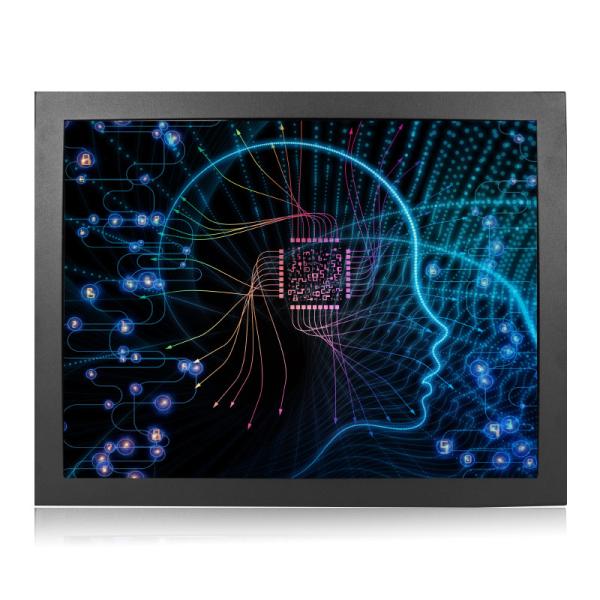

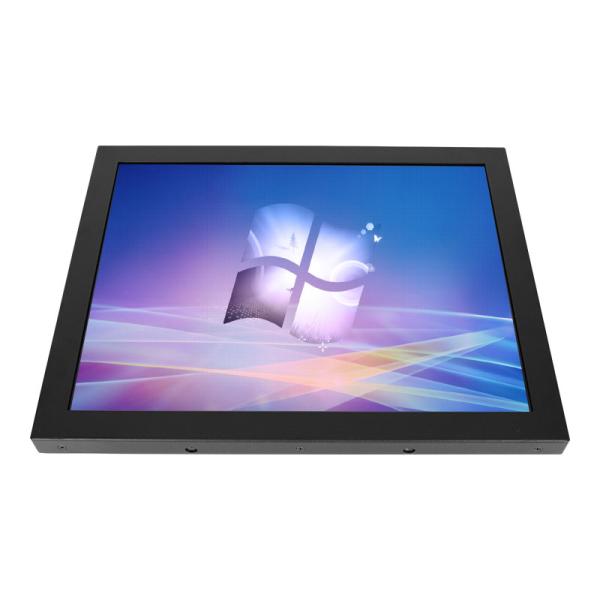

VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-121P-010
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Display Type :
4:3 Ratio 12.1" TFT-LCD
Series :
OT
Active Area :
245.8*184.3(mm)
Monitor Dimensions (W*H*D) :
281*219.5*44.5(mm)
Suggested Resolution :
1400*1050 @ 60Hz
Support Colors :
16.7M
Response Time (Typ.) :
5ms
Contrast Ratio (Typ.) :
800:1
Regular Warranty :
1 year
Video Input :
VGA/DVI/HDMI
Description

12.1 Inch PCAP Touch Monitor 4:3 Ratio Display For Kiosks

PCAP Touch Screen Product Description

This high resolution lcd monitor offers fast response and high sensitivity, with a high resolution of 1400x1050 and high contrast that delivers excellent image quality. It also provides multiple mounting options, including VESA mount, horizontal and vertical brackets mount, and is compatible with operating systems such as XP, WIN7, WIN8, and WIN10. Additionally, other sizes ranging from 7’’ to 43’’ can be offered.

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0121U-CA4P (P/N:KOT-121P-010)
Series OT
Display Type 4:3 Ratio 12.1" TFT-LCD
Active Area 245.8*184.3(mm)
Monitor Dimensions (W*H*D) 281*219.5*44.5(mm)
Suggested Resolution 1400*1050 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 350cd/m2
With Touch Monitor 297cd/m2
Response Time (Typ.) 5ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 50°/50°
Vertical(up/down) 45°/50°
Contrast Ratio (Typ.) 800:1
Video Input VGA/DVI/HDMI
Frequency (H/V) 30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥ 50,000 Hours
LED Back Light Life (Typ.) ≥ 50,000 Hours
Weight(N.W/G.W) 2.3Kg(1pcs) / 5.25Kg(2pcs in one package)
Package dimensions 373*170*317(mm)(2pcs in one package)
Power Consumption Standby Power: ≤1.5W / Operating Power: ≤12W
Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year
Touch Screen
Touch Type 12.1" Riot capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 6H
Light Transmittance ≥85%
Support System

Multi-Touch : WIN7,WIN8,WIN10

Single Touch : XP
Active Area 247.5*186.5(mm)
Thickness 3.3±0.2(mm)
Touch Test ≥ 50,000,000 次
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display

PCAP Touch Monitor Main Features

1. Sensitivity: 17 touch screen monitor is very sensitive and can achieve smooth and precise touch interaction even with light touch or using a stylus.

2. Multi-touch function: PCAP technology supports multi-touch function and can detect multiple touch points at the same time. This allows for more complex and natural user interactions, such as two-finger zooming, rotating, and sliding gestures.

3. Durable: flat touch screen monitor is made with a glass surface and is more durable than resistive touch screens. It is more resistant to scratches, wear and tear, and this leads to longer device lifespan.

Applications

waterproof touchscreen monitor are widely used in industries such as follows:

  • retail
  • gaming
  • kiosk
  • self-service
  • finance
  • transit
  • conference
  • education
  • healthcare
  • public service
  • e-commerce
  • hotels

VGA / DVI / HDMI 12.1 Inch PCAP Kiosk Touch Monitor 4:3 Ratio Display

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the flat panel touch screen?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
