15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2
Specifications
Brand Name :
KEETOUCH
Model Number :
KOT-156P-004
Place of Origin :
Shenzhen, China
Certification :
CCC, UL, FCC, CE, CB, RoHS
MOQ :
1pcs
Price :
Negotiable
Packaging Details :
two pieces per carton
Delivery Time :
7-15 work days
Payment Terms :
T/T, Western Union,L/C
Supply Ability :
10000 Piece/Pieces per Week
Resolution :
1920*1080 @ 60Hz
Viewing Angle :
70°/70°/60°/60°
Contrast Ratio :
650:1
Screen Size :
15.6 Inch
Product Name :
SAW Touch Monitor
Response Time :
10ms
Brightness :
400cd/m2
Touch Technology :
SAW
Description

Product Description:

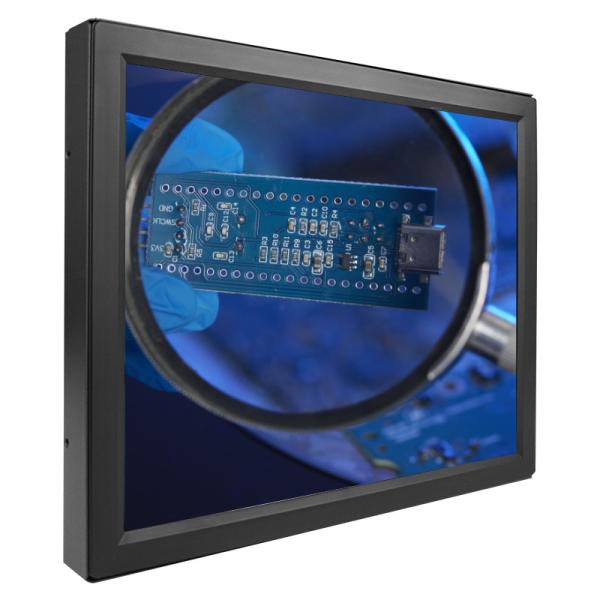

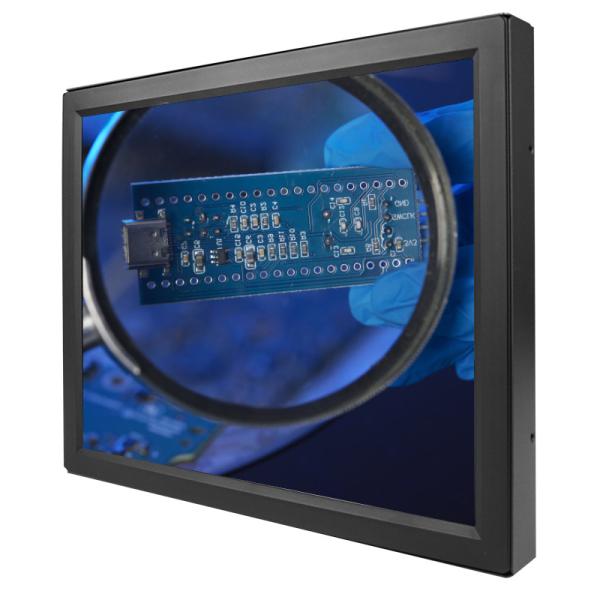

15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2

SAW Touch Monitor is a touch screen open frame monitor with a resolution of 1920*1080 @ 60Hz. It adopts the latest SAW touch technology and has a viewing angle of 70°/70°/60°/60°, providing an outstanding visual experience. The contrast ratio is 650:1, making the image displayed on the monitor vivid and intense. With two interfaces of VGA and DVI, it is easy to connect with other devices. All these features make the SAW Touch Monitor perfect for commercial and industrial applications, greatly improving the work efficiency.

Specification:

Complete Machine
Model No. KOT-0156U-SA4BP (P/N:KOT-156P-004)
Series OT
Display Type 16:9 Ratio 15.6" TFT-LCD
Active Area 344.23*193.54(mm)
Monitor Dimensions (W*H*D) 388.5*237.5*43(mm)
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 400cd/m2
With Touch Monitor 340cd/m2
Response Time (Typ.) 5ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 70°/70°
Vertical(up/down) 60°/60°
Video Input VGA/DVI
Frequency (H/V) 30～80KHz / 50～76Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥15,000 Hours
LED Back Light Life (Typ.) ≥15,000 Hours
Package dimensions 468*150*323(mm)(2pcs in one package)
Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Mechanical Dimensions

15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2

Applications:

SAW Touch Monitors find extensive applications across various industries, including retail, gaming, kiosks, self-service, finance, transit, conferences, education, healthcare, public services, e-commerce, hotels, restaurants, travel services, payment systems, museums, exhibitions, smart homes, subways, railway stations, control and operation systems, airports, and entertainment, among others.
15.6 Inch Open Frame LCD Display With High Brightness - 400cd/M2

Support and Services:

SAW Touch Monitor technical support and services include:

  • Free technical support via telephone, email and online chat.
  • On-site repair and maintenance services.
  • Software updates and upgrades.
  • Replacement parts and components.

FAQ:

Q: What is the brand of this monitor?
A: The brand of this monitor is KEETOUCH.
Q: What is the model number of this monitor?
A: The model number of this monitor is KOT-156P-004.
Q: Where is this monitor produced?
A: This monitor is produced in Shenzhen, China.
Q: What certifications does this monitor have?
A: This monitor has CCC, UL, FCC, CE, CB, and RoHS certification.
Q: How many monitors can be purchased with a minimum order?
A: The minimum order is 1pcs.
