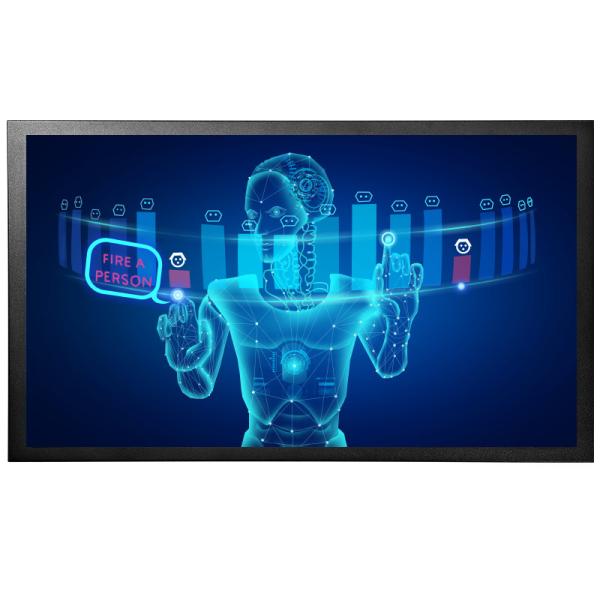

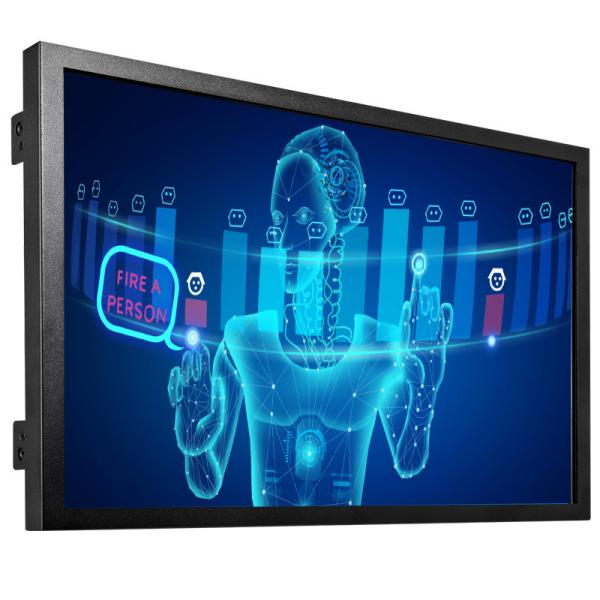

21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-215C-001
Place of Origin :
Shenzhen, China
Certification :
CCC, UL, FCC, CE, CB, RoHS
MOQ :
1pcs
Price :
Negotiable
Packaging Details :
two pieces per carton
Delivery Time :
7-15 work days
Payment Terms :
T/T, Western Union,L/C
Supply Ability :
10000 Piece/Pieces per Week
Response Time :
16ms
Viewing Angle :
85°/85°/80°/80°
Resolution :
1920*1080 @ 60Hz
Brightness :
250cd/m2

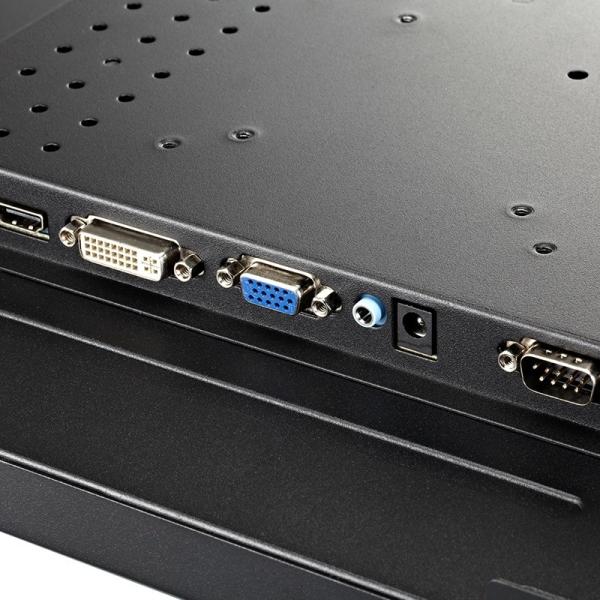

Interface :
VGA/DVI
Screen Size :
21.5 Inch
Touch Technology :
SAW
Weight（N.W/G.W） :
5.7Kg(1pcs)/13.8Kg(2pcs In One Package)
Description

Product Description:


21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen

SAW Touch Monitor is an open frame touchscreen, designed with advanced SAW (surface acoustic wave) technology, to provide an interactive experience. It has a 21.5 inch screen size, 85°/85°/80°/80° viewing angle, and a Net Weight of 5.7Kg (1pcs) / 13.8Kg (2pcs in one package). The SAW Touch Monitor is perfect for various applications, such as interactive kiosks, digital signage, retail, gaming, etc. Its open frame design allows for easy integration, and ensures a secure fit. With an ultra-thin profile, the SAW Touch Monitor is also incredibly lightweight, making it a great solution for a variety of projects.



Specification

Complete Machine
Model No.KOT-0215US-SA4BCP (PN: KOT-215C-001)
SeriesOT
Display Type16:9 Ratio 21.5" TFT-LCD
Active Area476.64*268.11(mm)
Monitor Dimensions (W*H*D)511.7*298*42.6(mm)
Suggested Resolution1920*1080@ 60Hz
Support Colors16.2M
Brightness (Typ.)Pure LCD Panel250cd/m2
With Touch Monitor225cd/m2
Response Time (Typ.)16ms
Viewing Angle(Typ.at CR＞10))Horizontal(left/right)85°/85°
Vertical(up/down)80°/80°
Frequency (H/V)30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz

EnvironmentOperating Temp.0～50°C
Operating RH20%～80%
Storage Temp.-20～60°C
Storage RH10%～90%
MTBF≥30,000 Hours
LED Back Light Life (Typ.)≥30,000 Hours
Weight(N.W/G.W)5.7Kg(1pcs)/13.8Kg(2pcs in one package)
Package dimensions605*195*400(mm)(2pcs in one package)
Power ConsumptionStandby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface

1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

OSD ControlButtonsAUTO,+,POWER,-,MENU
FunctionBrightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvalsCCC, UL, FCC, CE, CB, RoHS
Regular Warranty1 year

Mechanical Dimensions
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen

Applications:

SAW Touch Monitors find extensive applications across various industries, including kiosks, retail, finance, gaming, self-service, transit, conferences, education, healthcare, public services, e-commerce, hotels, restaurants, travel services, payment systems, museums, exhibitions, smart homes, subways, control and operation systems, railway stations, airports, and entertainment, among others.
21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen

Mechanical Dimensions:

21.5 Inch Surface Acoustic Wave Touch Monitor With High Resolution LCD Screen

FAQ:

Q: What is the Brand Name of the SAW Touch Monitor?
A: The Brand Name of the SAW Touch Monitor is KeeTouch.
Q: What is the Model Number of the SAW Touch Monitor?
A: The Model Number of the SAW Touch Monitor is KOT-215C-001.
Q: Where is the SAW Touch Monitor produced?
A: The SAW Touch Monitor is produced in Shenzhen, China.
Q: What certifications does the SAW Touch Monitor have?
A: The SAW Touch Monitor has certifications of CCC, UL, FCC, CE, CB, and RoHS.
Q: What is the minimum order quantity of the SAW Touch Monitor?
A: The minimum order quantity of the SAW Touch Monitor is 1pcs.
