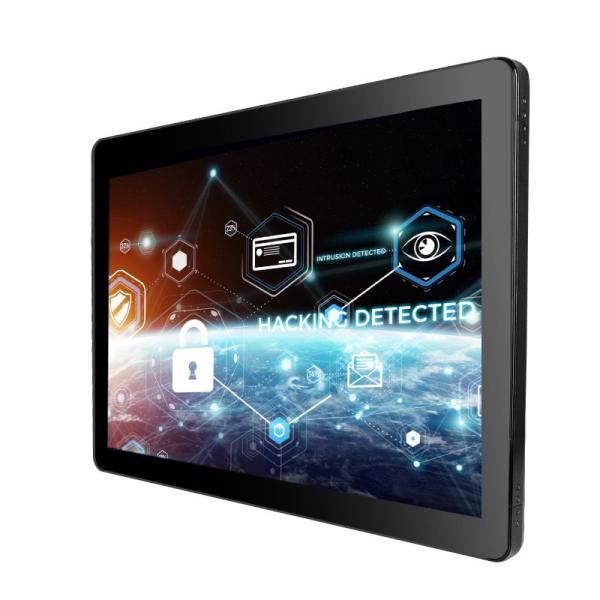

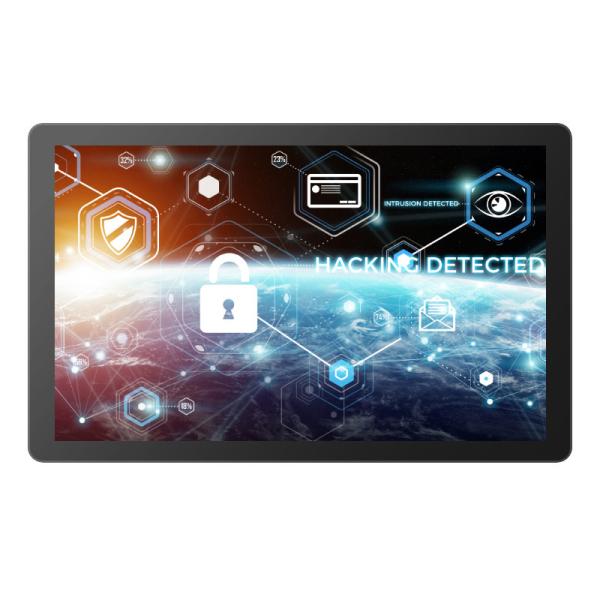

Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0320U-CA4PH（KOT-320P-013)
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton
Pure LCD Panel :
1500cd/m2
With Touch Monitor :
1250cd/m2
Video Input :
VGA/DVI/HDMI
Active Area :
700.6*395.1 (mm)
Contrast Ratio (Typ.) :
4000:1
Display Type :
16:9 Ratio 32" TFT-LCD
Product name :
High Brightness Touch Monitor
Viewing Angle(Typ.at CR＞10)) :
Horizontal(left/right) 89°/89° Vertical(up/down) 89°/89°
Frequency (H/V) :
30～80KHz / 60～75Hz
Series :
OT
Leadtime :
7-15 days
MTBF :
≥ 30,000 Hours
Warranty :
1 year
Sample :
on stock
Description

Outdoor Industrial High Brightness 1500nits 32 Inch Waterproof PCAP Touch Screen Monitor

High Brightness Touch Monitor Main Features

1. Support embedded,wall-mounted,rack-mounted,desktop,VESA support.
2. Aluminum alloy shell,good mechanical properties,better performance of heat dissipation.
3. LED backlight screen,highlight picture,perfect color.
4. Support Resistive touch, SAW touch , IR touch, Capacitive touch.
5. CCC, UL, FCC, CE, CB, RoHS certificate.
6. Complete machine triple protection:explosion-proof, flameproof, moisture-proof.

High Brightness Touch Monitor Specifications

Complete Machine
Model No. KOT-0320U-CA4PH (P/N:KOT-320P-013)
Series OT
Display Type 16:9 Ratio 32" TFT-LCD
Active Area 700.6*395.1 (mm)
Monitor Dimensions (W*H*D) 769*463.5*58.6 (mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 1500cd/m2
With Touch Monitor 1250cd/m2
Response Time (Typ.) 6ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 4000:1
Video Input VGADVIHDMI
Frequency (H/V) 30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 24V/ 5A

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. -15～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 30,000 Hours
LED Back Light Life (Typ.) 30,000 Hours
Power Consumption 130W
Mount Interface

1.VESA 400*400 mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 32" Capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness ≥6H
Light Transmittance ≥83%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

High Brightness Touch Monitor Mechanical Dimensions

Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch

Applications

1. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;
2. Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;
3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.

Outdoor Industrial Water Resistant Touch Screen Monitor 1500 Nits 32 Inch

FAQ

1. What’s your MOQ?

Our minimum order quantity is 1pc only.

2. What is your warranty period?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

3. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.

4. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

5. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

6. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
