Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0430U-CA4P(KOT-430P-004)
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Response Time (Typ.) :
6.5ms
Display Type :
16:9 Ratio 43" TFT-LCD
Support Colors :
16.7M
Video Input :
VGA\DVI\HDMI
Contrast Ratio (Typ.) :
3000:1
Active Area :
942.9*531.25 (mm)
Storage Temp. :
-20～60°C
Frequency (H/V) :
30～80KHz / 60～75Hz
Product name :
PCAP Touch Monitor
Warranty :
one year
Description

KeeTouch 43 Inch PCAP Touch Screen Monitors Customized Metal Frame LCD Monitors

PCAP Touch Monitor Description

Our 43 inch PCAP touch monitors come with Full HD 1920x1080, full viewing angle 178°/178°, wide aspect ratio 16:9, exceptional color performance, high contrast, delivering excellent image clarity. Featuring metal frames with a UL 60950 ball-drop vandal proof, scratch-resistant, front panel waterproof, this display can be installed in the most demanding environment and build in different sets-up. They include VGA, HDMI, DVI for video input and USB for touch.

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0430U-CA4P(P/N:KOT-430P-004)
Series OT
Display Type 16:9 Ratio 43" TFT-LCD
Active Area 942.9*531.25 (mm)
Monitor Dimensions (W*H*D) 1004*592*64.6 (mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M

Brightness (Typ.)

 Pure LCD Panel 380cd/m2
With Touch Monitor 320cd/m2
Response Time (Typ.) 6.5 ms

Viewing Angle(Typ.at CR＞10))

 Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 3000:1
Video Input VGADVIHDMI
Frequency (H/V) 30～80KHz / 60～75Hz

Power Supply

Type: External brick

Display voltage: DC 24V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

 Operating Temp. -10～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 50,000 Hours
LED Back Light Life (Typ.) 50,000 Hours

OSD Control

 Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Touch Type 43" Capacitive touch screens, antiglare and tempered type
Touch input USB
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Regular Warranty 1 year

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

Waterproof PCAP Touch Monitor 43 Inch HD 1920x1080 With Metal Frame

KeeTouch Advantages:

  • Over 16 years' experience, Keetouch is a leading manufacturer of touch products and supplier of touch solution.
  • Comprehensive product lines including PCAP/SAW/IR touch screen, Open frame touch monitors, all-in-one touch panel PCs, sheet metal cases.
  • Monthly capacity is more than 30,000 pcs
  • Based your needs, product design, logo and function including anti-glare, privacy film, brightness, hardware and software can be customized.

  • Established branches office all over the world, such as Germany, Russia, Brazil, india, etc, to provide local service.

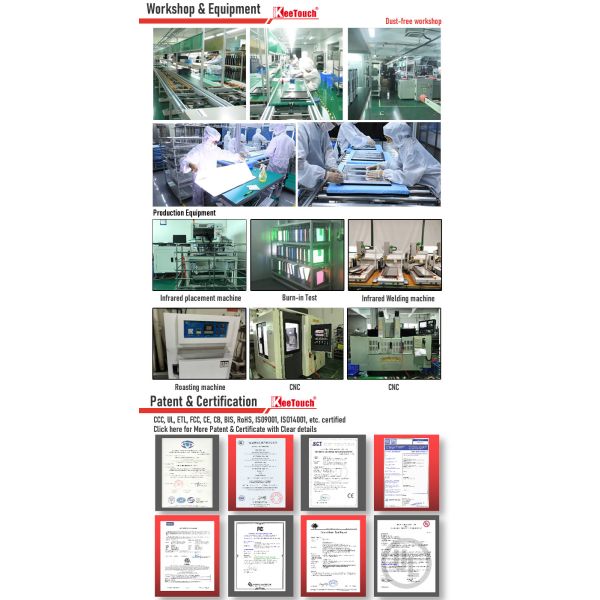

  • Our products are certified with CE, UL, CB, BIS, ISO 14001, ISO 9001. etc. they are all go through strict and comprehensive quality management system test, which enable us to control every production aspect and ensure the reliable and good performance of products from the very beginning to the finished process.

Waterproof PCAP Touch Monitor 43 Inch HD 1920x1080 With Metal Frame

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

Waterproof PCAP Touch Monitor 43 Inch HD 1920x1080 With Metal Frame

FAQ

1. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.

2. What’s your MOQ for the PCAP touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

5. . What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.
