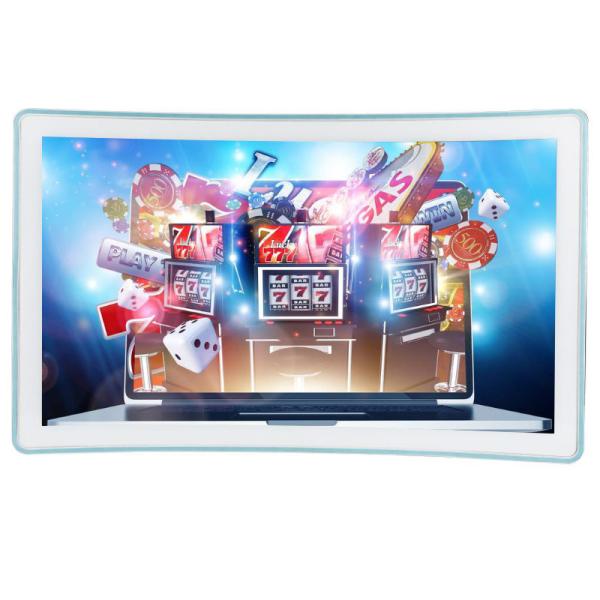

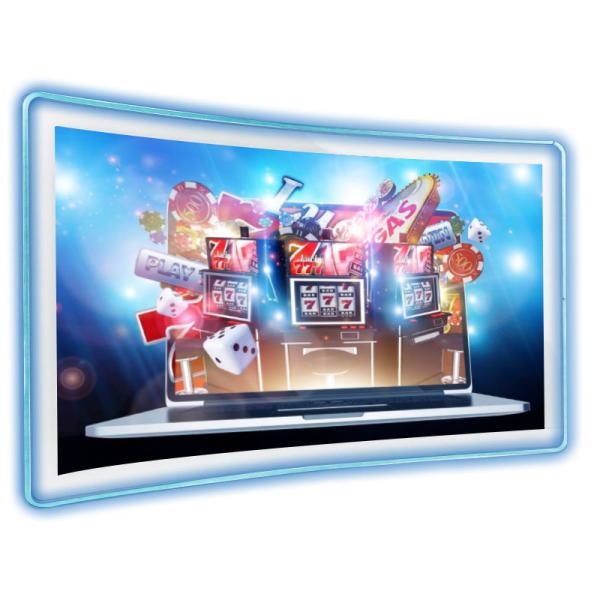

Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-320P-026
Certification :
FCC, CE, CB, RoHS,UL
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Suggested Resolution :
1920x1080 @ 60Hz
Contrast Ratio (Typ.) :
2100:1 （Min.） /3000:1(Typ.)
Video Input :
VGA\DVI
Support Colors :
16.7M
Response Time :
21s
Thickness :
3.8±0.2(mm)
Touch Test :
≥50,000,000 times
Product name :
PCAP Touch Monitor
Description

32 Inch Touch Screen Monitors LED Light Pot O Gold Gaming Touch Panel Monitors

PCAP Touch Monitor Description

With capacitive technology, this PCAP touch monitor supports 10 touch points, smooth operation and high touch accuracy, which ensure you better experience.

With the design of pure flat structure and LED light bar, they are stylish, waterproof and anti-vandal.

With mounting options including VESA mount and built-in installation, they are well-suited for your devices.

PCAP Touch Monitor Specifications


Complete Machine
Model No.
KOT-0320U-CA5P (P/N:KOT-320P-026)
Series OT
Display Type 16:9 Ratio 32" TFT-LCD
Active Area 698.4 x 392.85(mm)
Monitor Dimensions (W*H*D) 768.4*456*109.6(mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 250cd/m2
With Touch Monitor 213cd/m2
Response Time (Typ.) 21ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°(Typ.)/80°/80°(Min.)
Vertical(up/down) 89°/89°(Typ.)/80°/80°(Min.)
Contrast Ratio (Typ.) 2100:1 (Min.) /3000:1(Typ.)
Video Input VGADVI
Frequency (H/V) 54.15～84.38KHz / 49～72Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Power Consumption Standby Power: ≤2W / Operating Power: ≤40W
Mount Interface VESA 200mm
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Regular Warranty 1 year
Touch Screen
Touch Type 32" Capacitive touch screens
Touch input USB
Response Time ≤14ms
Hardness 6H
Light Transmittance ≥85%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 692.7*392(mm)
Thickness 3.8±0.2(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

PCAP Touch Monitor Mechanical Dimensions

Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

Gaming 32 Inch Curved Touch Screen Monitor Waterproof Anti Vandal OEM

FAQ

1. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
