32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-320P-012(KOT-0320U-CA4P)
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Response Time (Typ.) :
8ms
Display Type :
16:9 Ratio32"TFT-LCD, LED backing
Support Colors :
16.7M
Video Input :
VGA\DVI\HDMI
Contrast Ratio (Typ.) :
1000:1
Operating Temp. :
0～50°C
Storage Temp. :
-20～60°C
Light Transmittance :
≥85%
Product name :
PCAP Touch Monitor
Warranty :
one year
Description

32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9

PCAP Touch Monitor Main Features

  • ​IP65 grade water-proof, and dust-proof for the front panel
  • Aluminum alloy shell, good mechanical properties, better performance of heat dissipation
  • Compatible with various industrial systems/applications
  • Except for the 32inch PCAP touch monitor, other sizes ranging from 7inch to 55inch for option
  • Unique white color PCAP touch monitor, very brilliant and eye-catching

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0320U-CA4P (P/N:KOT-320P-012)
Series OT
Display Type 16:9 Ratio32"TFT-LCD, LED backing
Active Area 700.6*395.1(mm)
Monitor Dimensions (W*H*D) 783.6*473.5*55.2(mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 280cd/m2
With Touch Monitor 238cd/m2
Response Time (Typ.) 8ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right):85°/85°
Vertical(up/down): 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGADVIHDMI
Frequency (H/V) 37.9～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Weight(N.W/G.W) 10.2Kg(1 pcs)
Package dimensions 851*153*553(mm)(1pcs)
Power Consumption Standby Power: ≤2W / Operating Power: ≤40W
Mount Interface

1.VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 32" Capacitive touch screens
Touch input USB
Response Time ≤14ms
Hardness 6H
Light Transmittance ≥85%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 700.6*395.1(mm)
Thickness 4.3±0.2(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.

PCAP Touch Monitor Mechanical Dimensions

32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9

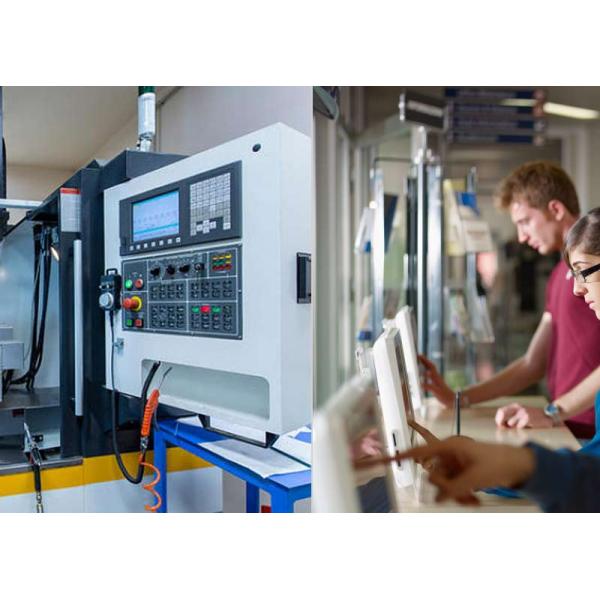

Applications

  1. Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment, Industrial control equipment, Advertising kiosks, All-in-one conference machine, etc.
  2. Business Organizations: supermarkets, large-scale shopping malls, exclusive agencies, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, and pharmacies.
  3. Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
  4. Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, and golf courses.

32 Inch PCAP Touch Monitor Industrial Touch Sensor TFT Display 16:9

FAQ

1. What is your delivery time?
3-5 work days for inventory items, 7-15 business days for bulk production.

2. What is your warranty period?
Our regular warranty is 12 months for all the products, with a 2-3 years Warranty (optional).

3. Do you have any stock items?

The hot sale and regular items have stock ready for delivery.

4. What payment terms can be accepted?

T/T, West Union, PayPal, AliPay (L/C can be negotiated)

5. Do you give any discount?
We will do our utmost to support you with a competitive price, also good service will be offered.
