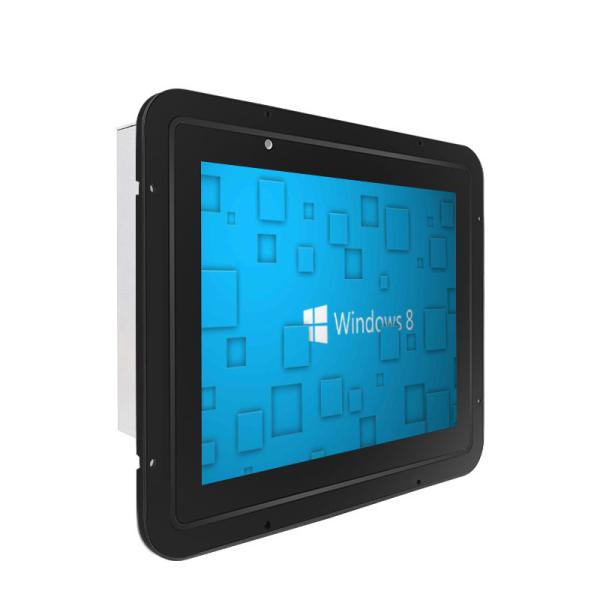

1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-008C-005
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton
Product name :
High Brightness Touch Monitor
Suggested Resolution :
1024*768 @ 60Hz
Contrast Ratio ( :
1000:1
Video Input :
VGA/HDMI
Active Area :
163*122.5(mm)
Brightness-Pure LCD Panel :
≥1000cd/m2
Display Type :
4:3 Ratio 8" TFT-LCD
Frequency (H/V) :
30～80KHz / 60～75Hz
MTBF :
≥ 30,000 Hours
Touch input :
USB
Description

8 Inch High Brightness Touch Screen Monitor Support Win 7 8 9 10 And Android OS

High Brightness Touch Screen Monitor Main Features

KeeTouch Capactive Touch Monitors have a modern sleek look with its flat edge to edge glass IP65 Water -and dust proof front panels. This product line comess with capacitive 10 finger multitouch,glass front reaching MOSH 7,the glass surface can be anti-glare(chemical etched),a wide variety of conectors including USB-B for touch,HD mi.DVI-D,VGA and audio inputs,all lockable including the DC-IN.Each capactive Touch Monitor has an A+ industrial LCD panel with guarantee Usingwin's 100% no pixel errors. The monitor’s screw patterns on the back for VESA 75 or mounts.

High Brightness Touch Screen Monitor Specifications

Complete Machine
Model No. KOT-0080U-CA4PH (P/N:KOT-008C-005)
Series OT
Display Type 4:3 Ratio 8" TFT-LCD
Active Area 163*122.5(mm)
Monitor Dimensions (W*H*D) 214*177*40.7(mm)
Suggested Resolution 1024*768 @ 60Hz
Support Colors 16.2M
Brightness (Typ.) Pure LCD Panel ≥1000cd/m2
With Touch Monitor ≥850cd/m2
Response Time (Typ.) 16ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/HDMI
Frequency (H/V) 30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. -15～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥ 30,000 Hours
LED Back Light Life (Typ.) ≥ 30,000 Hours
Power Consumption Standby Power: ≤1.5W / Operating Power: ≤13W
Mount Interface Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 8" capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 6H
Light Transmittance >80%
Support System

Multi-Touch : WIN7,WIN8,WIN10

Single Touch : XP
Touch Test ≥ 50,000,000 次
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

High Brightness Touch Screen Monitor Mechanical Dimensions

1024×768 High Brightness Touch Monitor 8 Inch IP65 Water Resistant

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the high brightness touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the high brightness touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.

5. What are the shipping ways?

We will ship the goods according to customer’s requirement. For sample, normally by FedEx, DHL, UPS, TNT. For bulk order, by air or by sea.

6. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.
