10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-101P-001
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton
Suggested Resolution :
1280*800 WXGA
Contrast Ratio ( :
800:1
Video Input :
VGA/HDMI/DVI
Active Area :
216.96*135.6(mm)
Brightness-Pure LCD Panel :
≥1200cd/m2
Brightness-With Touch Monitor :
≥1020cd/m2
Product name :
High Brightness Touch Monitor
Mount Interface :
1. VESA 75mm 2. Mount bracket, horizontal or vertical mount
OSD Control :
Buttons AUTO,+,POWER,-,MENU Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply :
Display voltage: DC 12V±5% 3.3A
Description

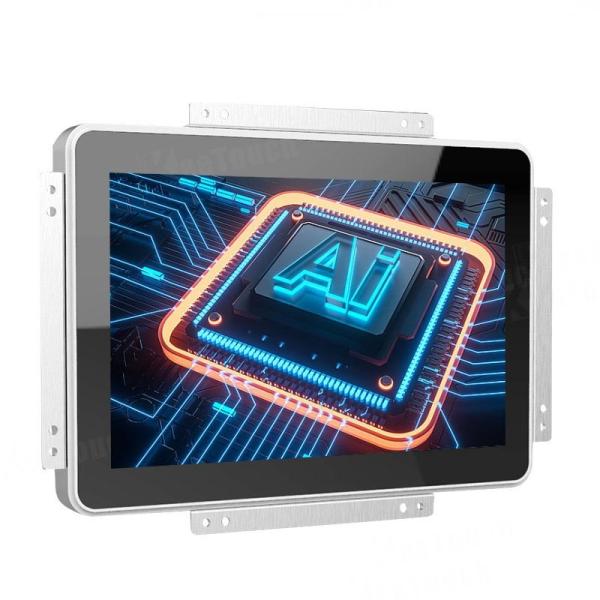

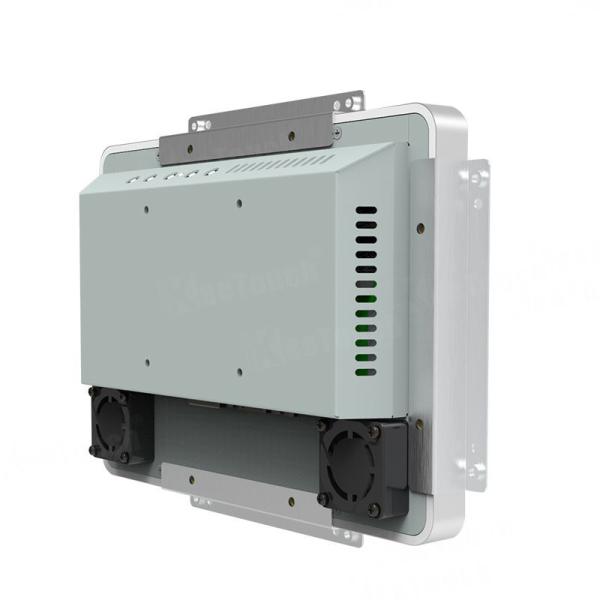

10.1 inch High Brightness Monitor with capacitive touch screens for outdoor

High Brightness Touch Monitor Main Features

  • Anti-glare, anti-vandal high brightness touch monitor
  • PCAP multi touch screen, high quality touch experience
  • High brightness:1000 - 2000 cd/m2 optional
  • Pure flat designed high brightness touch monitor, IP65 frontside waterproof
  • Interface: DVI + VGA interfaces,
  • Touch Input: USB
  • Support OS: XP,WIN7,WIN8,WIN10

High Brightness Touch Monitor Specifications

Complete Machine
Model No. KOT-0101U-CA4PHB (P/N:KOT-101P-001)
Series OT
Display Type 16:10 Ratio 10.1" TFT-LCD,LED backlight
Active Area 216.96*135.6(mm)
Monitor Dimensions (W*H*D) 259.5*182.5*50(mm)
Suggested Resolution 1280*800 WXGA
Support Colors 16.2M

Brightness (Typ.)

 Pure LCD Panel ≥1200cd/m2
With Touch Monitor ≥1020cd/m2
Response Time (Typ.) 16ms

Viewing Angle(Typ.at CR＞10))

 Horizontal(left/right) 85°/85°
Vertical(up/down) 85°/85°
Contrast Ratio (Typ.) 800:1
Video Input VGA/DVI/HDMI
Frequency (H/V) 30～80KHz / 60～75Hz
Heat Dissipation Fan Cooling

Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

 Operating Temp. -20～65°C
Operating RH 60℃, RH 90%
Storage Temp. -25～70°C
Storage RH 10%～90%
MTBF ≥ 50,000 Hours
LED Back Light Life (Typ.) ≥ 50,000 Hours
Power Consumption Standby Power: ≤15W / Operating Power: ≤18W
Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount
Weight(N.W/G.W) 2.1Kg(1pcs) /7.5Kg(2pcs in one package)
Package dimensions 415*255*295mm(2pcs in one package)

OSD Control

 Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 10.1" capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 6H
Light Transmittance >85%
Support System

Multi-Touch : WIN7,WIN8,WIN10 Si

ngle Touch : XP
Active Area 219.2*137.8(mm)
Thickness 3.75±0.2mm
Touch Test ≥ 50,000,000 次
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

High Brightness Touch Monitor Mechanical Dimensions

10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor

Applications

1. Automatic system:intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment,Industrial control equipment,Advertising kiosks,All-in-one conference machine,etc.

2. Public Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,convention centers, ticket agencies, HR market, lottery centers;

3. Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

10.1 Inch Capacitive Touch Screen Monitor 1020cd/M2 Brightness For Outdoor

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ?

Our minimum order quantity is 1pc only.

3. What is your warranty period?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the product according to the customer's requirements?

Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
