32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-320P-011(KOT-0320U-CA4P)
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Response Time (Typ.) :
8ms
Display Type :
16:9 Ratio 31.5" TFT-LCD
Support Colors :
16.7M
Video Input :
VGA\DVI\HDMI
Contrast Ratio (Typ.) :
1000:1
Vertical(up/down) :
80°/80°
Storage Temp. :
-20～60°C
MTBF :
30,000 Hours
Product name :
PCAP Touch Monitor
Warranty :
one year
Description

32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions

PCAP Touch Monitor Main Features

  • Projected-Capacitive technology, 10-point multi-touch, sensitive and accurate touch solutions
  • Adopt industrial control HD LCD screen +LED backlight screen, highlight picture, perfect color
  • The 32inch PCAP touch monitor can be Compatible with various industrial systems/applications.
  • Real IP65 waterproof with the nice pure flat front panel, using industrial grade TFT-LCD
  • CCC, ETL, FCC, CE, CB, RoHS certificates

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0320U-CA4P (P/N:KOT-320P-011)
Series OT
Display Type 16:9 Ratio 31.5" TFT-LCD
Active Area 698.4*392.85(mm)
Monitor Dimensions (W*H*D) 783.6*473.5*55.5(mm)
Suggested Resolution 1920x1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 280cd/m2
With Touch Monitor 238cd/m2
Response Time (Typ.) 8ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 85°/85°
Vertical(up/down) 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGADVIHDMI
Frequency (H/V) 37.9～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Weight(N.W/G.W) 10.2Kg(1pcs)
Package dimensions 851*153*553(mm)(1pcs in one package)
Power Consumption Standby Power: ≤2W / Operating Power: ≤40W
Mount Interface

1.VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 32" Capacitive touch screens
Touch input USB
Response Time ≤14ms
Hardness 6H
Light Transmittance ≥85%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 705.00*397.85(mm)
Thickness 4.3±0.2(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according to the specific system and version.

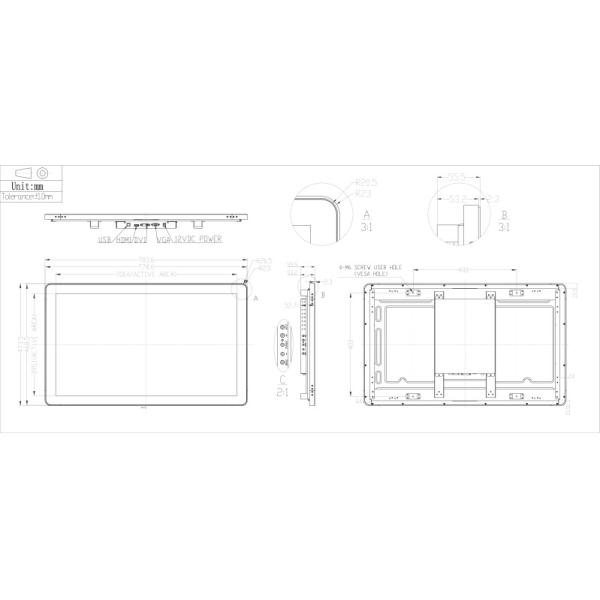

PCAP Touch Monitor Mechanical Dimensions

32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions

Why choose KeeTouch?

  1. 16+ years of abundant experience in producing various touch products including touchscreens, touch monitors, all-in-touch computers, and other hardware parts.
  2. A professional Sales Team (20+ sales representatives) and a strong R&D Team ( more than 40 senior engineers) offer you complete support on products and technicals.
  3. Detailed specification sheets, posters, brochures, impressive product videos, and 3D drawings help you catch the target market in the shortest time.
  4. Worldwide certificates like UL, FCC, CE, ROHS, and TUV are ready. No worry about the import and sale.

32 Inch PCAP Touch Monitor Open Frame Capacitive Touch Solutions

FAQ

Q: Are you a manufacturer or a trader?

A: KeeTouch is a 16-year professional manufacturer of touch products, and we started to engage in this field in 2006.

Q: What are your main product lines?

A: Our product lines include touchscreens(covers SAW/IR/PCAP technology), touch monitors, all-in-one touch pc, and other hardware accessories.

Q: What delivery terms can be accepted?

A: EXW, FOB, CIF, DDU, DDP are all ok.

Q: What's the package of the industrial touch monitor?

A: K-K layer carton box.

Q: How about the OEM/ODM ability?

A: KeeTouch has a strong R&D team to do customizations. OEM and ODM are welcome.
