23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0238U-CA4P(KOT-238P-002）
Certification :
FCC, CE, CB, RoHS,UL,BIS
Place of Origin :
Shenzhen, China
MOQ :
1piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
Carton
Response Time (Typ.) :
14ms
Display Type :
16:9 Ratio 23.8" TFT-LCD
Support Colors :
16.7M
Video Input :
VGA\HDMI
Contrast Ratio (Typ.) :
1000:1
Operating RH :
20%～80%
Storage RH :
10%～90%
Light Transmittance :
≥85%
Product name :
PCAP Touch Monitor
Warranty :
one year
Description

23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle

PCAP Touch Monitor Main Features

  • PCAP multi-touch screen, up to 10 points touch
  • Dust-proof and vandal-proof PCAP touch monitor with full viewing angle
  • High contrast ratio and high resolution PCAP touch monitor, high-quality image
  • Industrial grade, lasting touch, durable even in harsh environment
  • VGA/DHMI interfaces,USB for touch input
  • Multiple mounting options include VESA mount, horizontal vertical brackets mount
  • Support system: XP, WIN7, WIN8, WIN10, Linux, Android
  • Other sizes are optional (7’’-43’’)

PCAP Touch Monitor Specifications

Complete Machine
Model No. KOT-0238U-CA4P (P/N:KOT-238P-002)
Series OT
Display Type 16:9 Ratio 23.8" TFT-LCD
Active Area 528*297.5(mm)
Monitor Dimensions (W*H*D) 573.3*345.1*43(mm)
Suggested Resolution 1920*1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 250cd/m2
With Touch Monitor 215cd/m2
Response Time (Typ.) 14ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/HDMI
Frequency (H/V) 30～82KHz / 50～75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

 Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 30,000 Hours
LED Back Light Life (Typ.) 30,000 Hours
Power Consumption Standby Power: 2W / Operating Power: ≤27W
Mount Interface

1. VESA 75mm and 100mm

2. Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 23.8" Capacitive touch screens
Touch input USB
Response Time ≤10ms
Hardness 7H
Light Transmittance ≥87%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Glass Thickness 3(mm)
Touch Test ≥50,000,000 times

NOTE :

① The display SPEC. are adjusted according to the selected LCD screen and touch screen

② The support system is adjusted according the specific system and version.

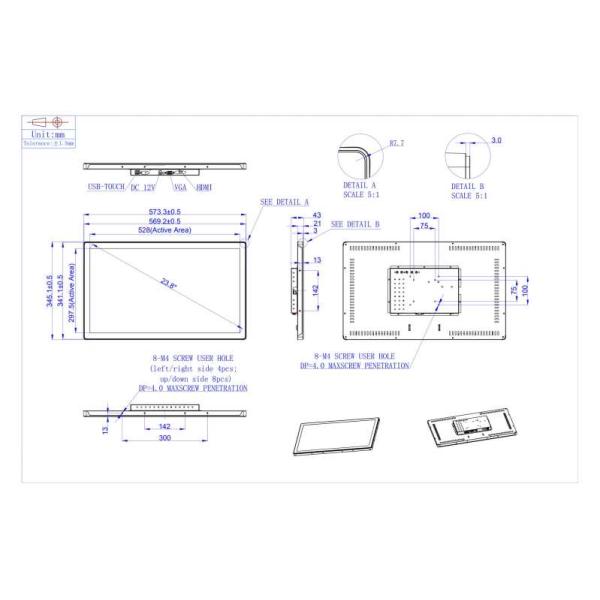

PCAP Touch Monitor Mechanical Dimensions

23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle

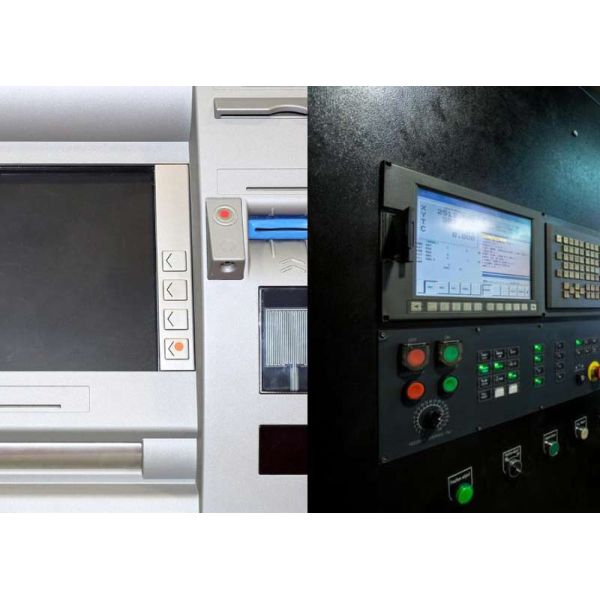

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

23.8 Inch PCAP Touch Monitor 16:9 Ratio With Full Viewing Angle

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the PCAP Touch Monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the PCAP Touch Monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the PCAP Touch Monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

6. What is your delivery time?

3-5 work days for inventory orders, 7-15 business days for bulk production.
