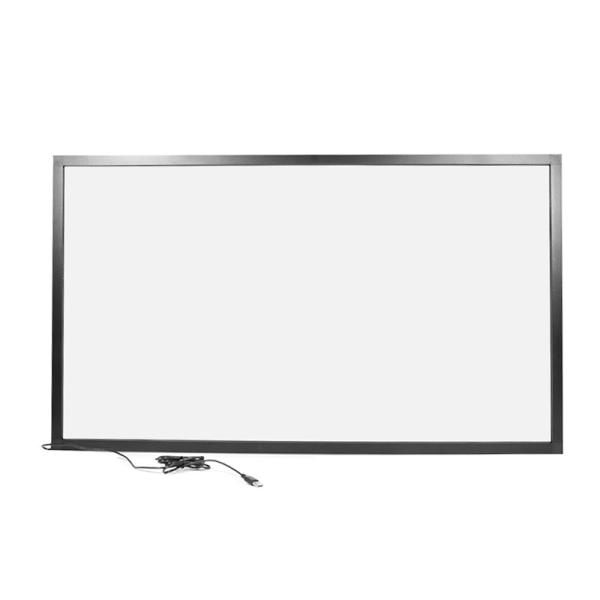

Infrared Touch Glass Screen Main Features
This 43 Inch can be suitable for internal and external linked environment, widely used to financial telecom service, advertisement show, industrial control, public query, self-service, E-education, and games etc.Its connector USB interface, Intelligent automatic calibration, drive-free and maintenance-free.Aluminum alloy shell with strong stability, fast response(5-10ms).Without driver, supporting plug and play.Draw smooth&accurate curves, no blind area, breakpoints, jump points, pause and other undesirable phenomena.
Infrared Touch Glass Screen Specifications
Model No. | WKMI-U0430A3-06-WR-10 |
Housing | Aluminum |
Outside Dimensions | 990.2±1mm(L)×578.4±1mm(W)×8.4±1mm(H) |
Active Area | 944.2±1mm(L)×532.4±1mm(W) |
Aspect Ratio | 16:9 |
Size | 43 inch |
Touch Activation Force | No minimum touch pressure required |
Number of touch points | 10 touch points |
Minimum Touch Object | A diameter of 6mm opaque objects |
Touch Durability | 60,000,000 touch/cm² |
Resolution | 32768 × 32768 |
Driver free | HID* compatible, up to 40 touch points |
Linearity Deviation | ±1mm |
Fault Tolerance | Workable even 75% sensors are damaged |
Frames per Second | Up to 450 fps |
Response Time | 5-10ms |
Light Transmission | 100% without glass |
Operate System Support | Windows®7,Windows®8,Vista,XP,Mac® OS,Linux,Android |
Power Supply | Signal USB Connection |
Low Power Consumption | Operating ≤2W, Stand by ≤250mW |
Electrostatic Discharge | Per EN61000-4-21995; Level 4. |
Contact Discharge:8KV | |
Air Discharge:15KV | |
15kV on USB Connector pins | |
Temperature | operating:-20oC ~ 70o C |
storage:-40oC ~ 85oC | |
Humidity | operating:10% ~ 90% |
storage: 10% ~ 90% | |
Certifications | FCC , CE, RoHS |
Operating Environment | Indoor and outdoor |
Applicative Screen | LED,LCD,PDP etc. |
Applications
Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.
Why choose us ?
Factory you can trust
In 2012, KeeTouch was awarded the high and new technology enterprise of china and recognized by government.
The items we offered are approved by CCC, UL, ETL, FCC, CE,CB,BIS, RoHS.
Local support
We have branch office in Germany, Russia, Brazil and India. Provide localization services and quick after sales service.
Strong and professinal R&D team
We have 40+ Professional R & D engineers to meet your requirements and offer professional assistance to you .
Strict QC Before delivery
The shipment you receive is inspected by strict QC and working temperature test to ensure quality.
FAQ
1. Are you a manufacturer for Infrared Touch Glass Screen ?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.
2. What’s your MOQ for Infrared Touch Glass Screen ?
Our minimum order quantity is 1pc only.
3. What is your warranty period for Infrared Touch Glass Screen ?
Our regular warranty is 12 month for all the products, with 2-3 years Warranty (optional).
4. Can you produce the infrared touch screen according to the customer's requirement?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time for Infrared Touch Glass Screen ?
3-5 work days for inventory order, 7-15 business days for bulk production.
