250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0170U-SA4BCW KOT-170C-009
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton box
Display Type :
5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight
Display Active Area :
13.3＂(338mm)×10.6＂(270mm)
Power Consumption :
16W Max
MTBF :
30,000 Hours
Response Time(Typ.) :
5s
Video Input :
VGA/DVI
Touch Response time :
USB/ 8.4ms
Product name :
SAW Touch monitor
Description

17 Inch SAW Touch Monitor Open Frame 250 Nits LCD Industrial Display

SAW Touch Monitor Description:

KeeTouch SAW touch monitor designed with waterproof surface acoustic wave touch technology to ensure an accurate and fast touch expeience even in harsh environment. The anti scartch touch glass contributes a long working life span for a single touch more than 50,000,000 times. There are multiple interfaces like VGA, USB, RS232, etc. Other sizes can be offered for 7" to 55".

SAW Touch Monitor Specifications

Model No. KOT-0170U-SA4BCW(P/N:KOT-170C-009)
Series OT,Water-proof and Compact
Display Type 5:4 Ratio 17＂Active matrix TFT-LCD, LED backlight
Display Active Area 13.3＂(338mm)×10.6＂(270mm)
Touch Monitor Dimensions Width: 369mm
Width with brackets: 389.4 mm
Height: 307mm
Height with brackets: 327.4mm
Depth: 49mm(not include lip):50mm(include lip)
Suggested Resolution 1280×1024@60Hz
Support Colors 16.7M
Brightness(Typ.) Pure LCD Panel 250cd/m2
With SAW Glass 225cd/m2
Response Time(Typ.) 5ms
Viewing Angle Horizontal(left/right): 170°(85°/85°)
(Typ.at CR＞10))
Vertical(up/down): 160°(80°/80°)
Contrast Ratio(Typ.) 1000:01:00
Video Input Analog RGB
Frequency(H/V) 30～80KHz / 60～75Hz
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operation Temp: 0～50°C
Storage Temp: -20～60°C
Operation RH: 20%～80%
Storage RH: 10%～90%
MTBF 30,000 Hours
LED Back light Life(Typ.) 30,000 Hours
Weight(N.W/G.W) N.W :5Kg (Single) /G.W:12.8Kg (2pcs in one package)
Package Dimensions 445(L)*200(W)*395(H)mm(2pcs in one package)
Power Consumption 16W Max.
Standby power consumption 0.95W
Mount Interface 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied)
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch screen Type Keetouch 17" SAW 4 mm compact touch sensor
Touch System Interface Having USB interface
Touch Response time USB/ 8.4ms
Agency Approval CCC,ETL,FCC,CE,CB,RoHS
Regular Warranty 1 year

SAW Touch Monitor Mechanical Dimensions

250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch

Applications

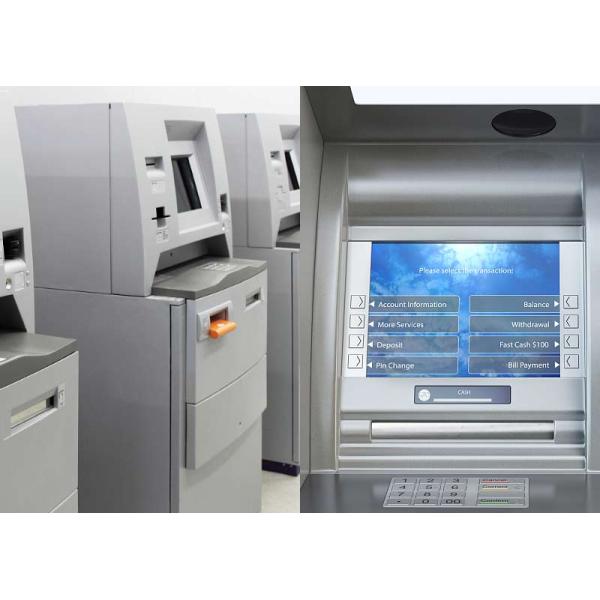

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

250 Nits SAW Touch Monitor , Industrial LCD Display Open Frame 17 Inch

Our Advantages:

  • More than 15 years professional experience in touch product industry;
  • 200 staffs, 45 trained R&D engineers and design teams support OEM / ODM projects;
  • Comply with ISO9001 quality system,ISO14001 environment management system and OC080000 limit harmful material management system certifications;
  • Developing a large number of agents and distributors,offering world-wide sales networks and comprehensive after-sale service system;
  • Branch offices widely spreads all over the world,such as Russia,Brazil,Germany and India etc;

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for the SAW touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for the SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. Do you give any discount?

We will do utmost to support you with the competitive price, also good service will be offered.

6. What is your delivery time for the SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
