Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-215C-008(KOT-0215U-IR3P)
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
two pieces per carton
Product name :
21.5'' Infrared Touch Monitor
Display Type :
16:9 Ratio 21.5" TFT-LCD
Suggested Resolution :
1920*1080
Brightness :
250cd/m2
Video Input :
VGA/DVI/HDMI
Viewing Angle :
178, 178
Touch Input :
USB
Certificates :
CCC, UL, FCC, CE, CB, RoHS
Description

21.5 Inch IR Touch Screen Monitor VGA/DVI/ with Full HD Touch Screen

Infrared Touch Monitor Main Features

  • Infrared multi touch panel, high quality touch experience

  • IP65 grade water-proof,dust-proof for front panel

  • Compatible with various industrial systems/application
  • Aluminum alloy shell,good mechanical properties,better performance of heat dissipation

  • Multiple mounting options include VESA mount, horizontal vertical brackets mount

  • Support system: XP,WIN7,WIN8,WIN10, Linux, Android

  • Support Resistive touch, SAW touch , IR touch, Capacitive touch

Infrared Touch Monitor Specifications

Complete Machine
Model No. KOT-215C-008 (P/N:KOT-0215U-IR3P)
Series OT
Display Type 16:9 Ratio 21.5" TFT-LCD
Active Area 476.64*268.11(mm)
Monitor Dimensions (W*H*D) 520*312*45.8(mm)
Suggested Resolution 1920*1080 @ 60Hz
Support Colors 16.7M
Brightness (Typ.) Pure LCD Panel 250cd/m2
With Touch Monitor 225cd/m2
Response Time (Typ.) 14ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 89°/89°
Vertical(up/down) 89°/89°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/DVI/HDMI
Frequency (H/V) 30～80KHz / 50～76Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF 30,000 Hours
LED Back Light Life (Typ.) 30,000 Hours
Package dimensions 605*195*400(mm)(2pcs in one package)
Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch screen Type Keetouch 21.5" IR touch screen
Touch System Interface USB
Agency approvals CCC, UL, FCC, CE, CB, RoHS
Regular Warranty 1 year

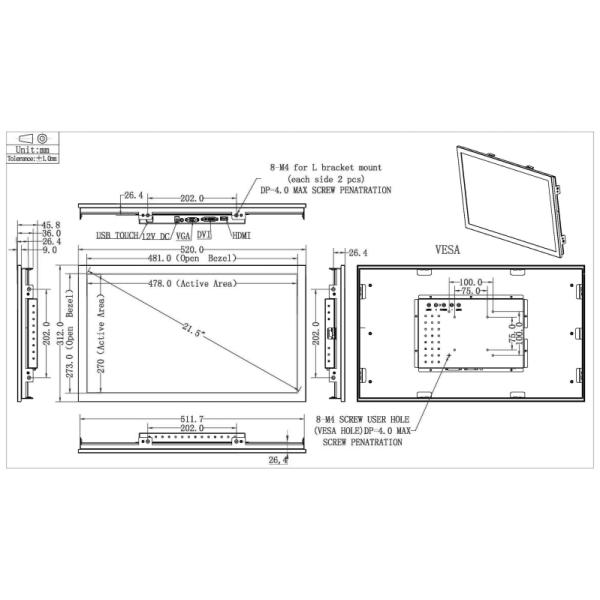

Infrared Touch Monitor Mechanical Dimensions

Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input

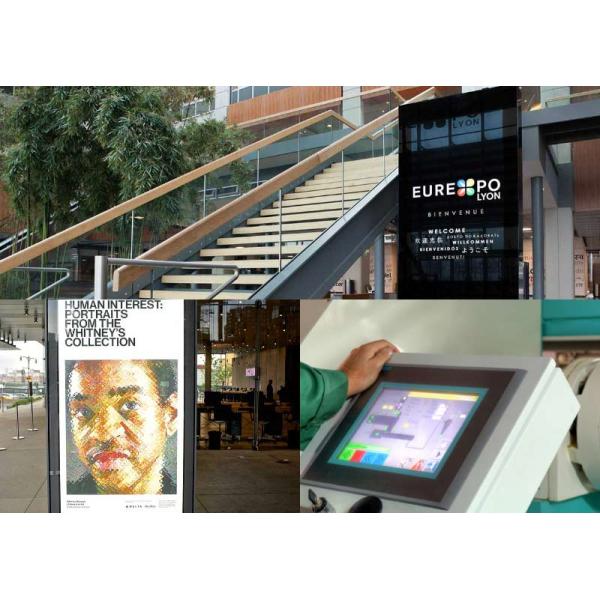

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

Full HD Infrared Touch Monitor 21.5 Inch With VGA DVI Video Input

FAQ

1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.


2. Do you have stock?
Yes, we have a large quantity of stock for our regular model products.

3. What is your warranty period for the infrared touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the infrared touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. What is your payment method?
We can accept T/T, Western Union, Paypal, Credit card and Alipay. ( L/C can be negotiable. )

6. How to ship to us from your factory?

Optional: Fedex/DHL/UPS/EMS, by air, by sea or to your China forwarder.
