19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
19 Infrared Touch Monitor , 250 Nits Waterproof Open Frame Touch Screen Monitor
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-0190U-IR3W KOT-190P-042
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
two pieces per carton
Display Type :
19＂Active Matrix TFT-LCD
Product name :
19'' Infrared Touch Monitor
Suggested Resolution :
1280×1024@60Hz
Contrast Ratio :
1000:1
Brightness :
250 cd/m2
Active Area :
14.8＂(377mm)×11.9＂(301mm)
Regular Warranty :
1 year
Support Colors :
16.7M
Video Input :
Analog RGB
Description

Industiral 19 Inch Infrared Touch Monitor 250 Nits Open Frame

Infrared Touch Monitor Main Features

  • Infrared touch screen, accurate touch, fast response, 1- 40 points optional
  • High resolution, high contrast infrared touch monitor, high definition visual enjoyment
  • IP65 grade water-proof,dust-proof for front panel.
  • Compatible with various industrial systems/application
  • Multiple mounting options include VESA mount, horizontal or vertical brackets mount
  • CCC, ETL, FCC, CE, CB, RoHS certificate.
  • Support system: XP, WIN7, WIN8, Linux
  • Other sizes can be offered (7’’- 43’’)

Infrared Touch Monitor Specifications

Model No. KOT-0190U-IR3W
Series OT
Display Type 19＂Active Matrix TFT-LCD
Display Active Area 14.8＂(377mm)×11.9＂(301mm)
Suggested Resolution 1280×1024@60Hz
Support Colors 16.7M
Brightness(Typ.) Pure LCD Panel 250cd/m2
With SAW Glass 225cd/m2
Response Time(Typ.) 16ms
Viewing Angle Horizontal(left/right):(85°/85°)
(Typ.at CR＞10))
Vertical(up/down):(80°/80°)
Contrast Ratio(Typ.) 1000:1
Video Input Analog RGB
Frequency(H/V) 30～80KHz / 60～75Hz
Power Supply Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operation Temp: 0～50°C
Storage Temp: -20～60°C
Operation RH: 20%～80%
Storage RH: 10%～90%
MTBF 50,000 Hours
LED Back light Life(Typ.) 50,000 Hours
Weight(N.W/G.W) N.W :5.85Kg (Single)
Power Consumption 15W Max.
Standby power consumption 0.95W
Mount Interface 1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical(Standard mount brackets are supplied)
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch screen Type Keetouch 19" IR Touch Mointor
Support System WinXP,Win7,Win8,Linux
Touch System Interface Having USB interface
Touch Response time 16ms
Agency Approval CCC,UL,FCC,CE,CB,RoHS
Regular Warranty 1 year

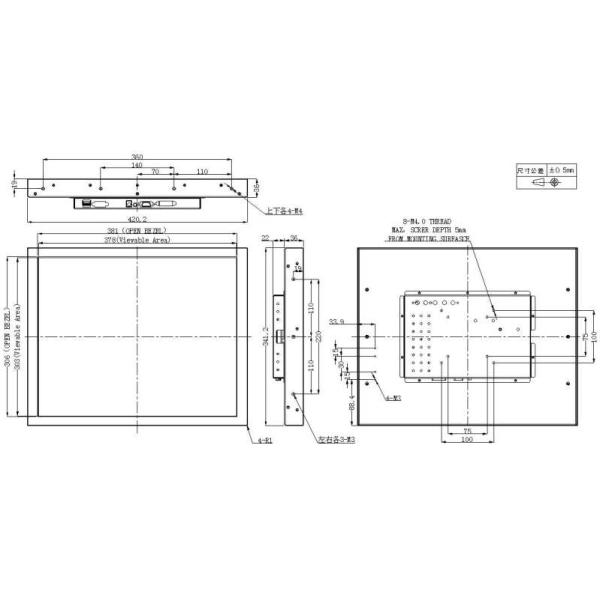

Infrared Touch Monitor Mechanical Dimensions

19

Applications

KeeTouch products are widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

19

FAQ

1. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

2. Do you have stock?

Yes, we have a large quantity of stock for our regular model products.

3. What is your warranty period for the infrared touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the infrared touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

6. Do you provide samples?
Yes, sample is available and in stock, can be sent out within 2 days.
