21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen
Specifications
Brand Name :
KeeTouch
Model Number :
KOT-215C-001(KOT-0215US-SA4BCP)
Certification :
CCC, UL, FCC, CE, CB, RoHS
Place of Origin :
Shenzhen，China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Pieces per Week
Delivery Time :
7-15 work days
Packaging Details :
carton box
Display Type :
16:9 Ratio 21.5" TFT-LCD
Display Active Area :
476.64*268.11(mm)
Response Time(Typ.) :
16ms
Video Input :
VGA/DVI
Response Time :
≤8ms(USB) ; ≤12ms(RS232)
Product name :
SAW Touch monitor
Monitor Dimensions (W*H*D) :
511.7*298*42.6(mm)
Pure LCD Panel :
250cd/m2
Description

21.5 Inch Anti Vandal SAW Touch Monitor With High Resolution LCD Screen

SAW Touch Monitor Description:

KeeTouch SAW touch monitor is a compact designed dust-proof screen for easy integration. The high quality LCD screen and scratch resistant touch panel deliver a long working life span. There are multiple mounting options like VESA mount, vertical brackets mount. It's well compatible with XP, WIN7, WIN8, WIN10, Android.

SAW Touch Monitor Specifications

Complete Machine
Model No. KOT-0215US-SA4BCP (PN: KOT-215C-001)
Series OT
Display Type 16:9 Ratio 21.5" TFT-LCD
Active Area 476.64*268.11(mm)
Monitor Dimensions (W*H*D) 511.7*298*42.6(mm)
Suggested Resolution 1920*1080@ 60Hz
Support Colors 16.2M
Brightness (Typ.) Pure LCD Panel 250cd/m2
With Touch Monitor 225cd/m2
Response Time (Typ.) 16ms
Viewing Angle(Typ.at CR＞10)) Horizontal(left/right) 85°/85°
Vertical(up/down) 80°/80°
Contrast Ratio (Typ.) 1000:1
Video Input VGA/DVI
Frequency (H/V) 30～80KHz / 60～75Hz
Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment Operating Temp. 0～50°C
Operating RH 20%～80%
Storage Temp. -20～60°C
Storage RH 10%～90%
MTBF ≥30,000 Hours
LED Back Light Life (Typ.) ≥30,000 Hours
Weight(N.W/G.W) 5.7Kg(1pcs)/13.8Kg(2pcs in one package)
Package dimensions 605*195*400(mm)(2pcs in one package)
Power Consumption Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface

1.VESA 75mm and 100mm

2.Mount bracket, horizontal or vertical mount
OSD Control Buttons AUTO,+,POWER,-,MENU
Function Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Agency approvals CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty 1 year

Touch Screen
Touch Type 21.5" Surface acoustic wave touch screen
Touch input USB/RS232
Response Time ≤8ms(USB) ; ≤12ms(RS232)
Hardness 7H
Light Transmittance ≥90%
Support System XP,WIN7,WIN8,WIN10,Linux,Android
Active Area 478*270(mm)
Thickness 4±0.2(mm)
Touch Test ≥50,000,000 times
Input Voltage DC 5V±5%

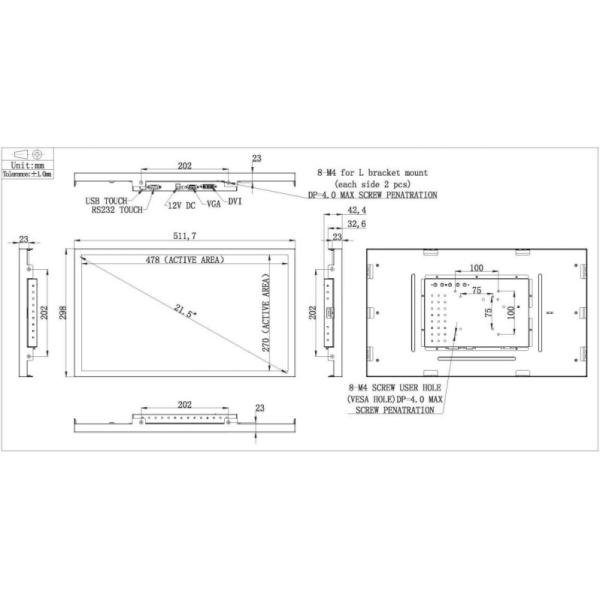

SAW Touch Monitor Mechanical Dimensions

21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen

Applications

Widely used in industries such as retail, gaming, kiosk, self-service, finance, transit, conference, education, healthcare, public service, e-commerce, hotels, restaurants, travel service, payment systems, museums, exhibitions, smart home, subways, railway stations, control and operation systems, airports, entertainments, etc.

21.5 Inch SAW Touch Monitor Anti Vandal Dust Proof With LCD Screen

Our Advantages:

  • High-tech and innovative enterprise;
  • More than 175+ design patents;
  • Completely and strictly quality control system;
  • 30,000+ manufacturing capacity per year;
  • Efficient Warehousing and Logistics;

FAQ

1. Are you a manufacturer?

Yes, KeeTouch is a professional touch product manufacturer for over 16 years, located in Shenzhen, China.

2. What’s your MOQ for SAW touch monitor?

Our minimum order quantity is 1pc only.

3. What is your warranty period for SAW touch monitor?

Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).

4. Can you produce the SAW touch monitor according to the customer's requirements?

Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.

5. What is your payment method?

We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )

6. What is your delivery time for SAW touch monitor?

3-5 work days for inventory orders, 7-15 business days for bulk production.
