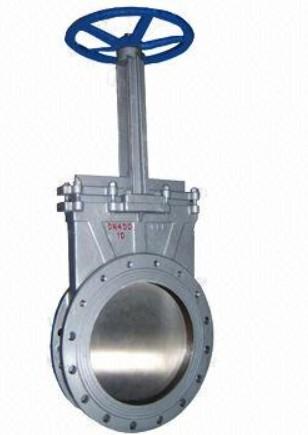

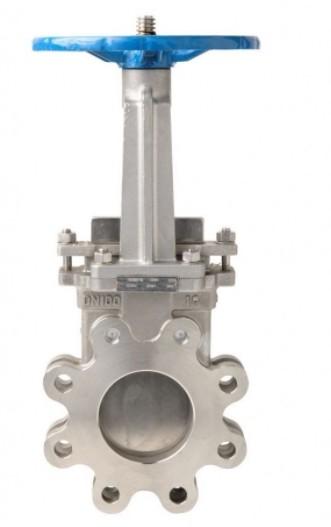

Manual Knife Gate Valve, beveled knife edge, wafer or lugged knife gate valve

Kelite Valve is specialized in manufacturing Manual Knife Gate Valve with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Sizes Range:

DN 50~600mm NPS 2”-24”

(Large diameter on request)

Sealing Options:

NBR:90°C EPDM: 120°C

Viton: 200°C PTFE: 200°C

Metal seal :304/316+Satellite

Max Working pressure:

DN50~DN250: 10Bar NPS2~NPS10:150Psi

DN300~DN450: 7Bar NPS12~NPS18:90Psi

DN500~DN600: 4Bar NPS20~NPS24: 60Psi

Face to Face: MSS SP-81

Flange connection:

GB/T 9113.1, JB/T 79.1,HG 20592,

ASME B 16.5, EN1092-1 (other connections on request)

Operation Option:

Handwheel/Bevel Gear

Pneumatic/Electric/Hydraulic

Certificates: API, CE,ISO9001,TS

Application:

Pulp & Paper / Water & Waster Water /Mining / Metallurgy/

Petrochemical /Printing & Dying / Pharmacy/ Beverage & Food

The Manual Knife Gate Valve is a unidirectional wafer knife edge gate valve used on industrial pipeline for on-off operation. The structure of body and seat eliminates clogging shutoff for flow with fine particles. Additionally, beveled knife edge helps the gate cut through thick media easily.

According to different working situation: non-rising stem Knife Gate Valve, wafer Knife Gate Valve, lugged Knife Gate Valve, pneumatic Knife Gate Valve, electric Knife Gate Valve, manual Knife Gate Valve are all available.

Body:

• Guide claws design at the port bottom for gate fixture, instead of a groove, eliminates any potential clogging when valve shutoff.
• Integral body design ensures smooth flow, easy assembly and smaller shell leakage possibility.

Gate:

• Beveled knife edge provides strong cutting stress and tight sealing.
• PTFE resilient point guider above the port prevents metal-metal contact between gate and body.
• Gate thickness can be increased to meet higher pressure.

Seat:

• Side-entry seat is replaceable, reducing the cost of maintenance.
• Preloaded seat is adjustable to meet different sealing class and compensate normal seat wear.
• Seat retainer covers the side of seat and prevents seat from direct flow flushing.

Other

• Double thrust bearing minimize the torque required for operation.
• Stem Cover is available
• Grease Nipple is available
• Bearing Cover is available

Sample BOM
