Standard Stainless Steel Floating Type Ball Valve , 3 Way Ball Valve
Standard Stainless Steel Floating Type Ball Valve , 3 Way Ball Valve
Specifications
Brand Name :
Kelite Valve
Model Number :
1/2"-12", CL150-600
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
20-40days
Packaging Details :
Plywood packing or fumigation packing
Size: :
NPS 1/2"~12"
Pressure Rating: :
Class 150~600
Material: :
A105,LF2, 316 ETC
Design Standard: :
API 608, API 6D, BS 5351, ASME B16.34
Face to Face: :
ASME B16.10, API 6D, BSEN 558
End Connection: :
ASME B16.5, BSEN 1092
Description

Three way floating forging type ball valve of 1/2"-12" CL150-600

Stainless steel 3-way ball valve shape: T-shape-120 ° Size: DN80 (full bore) Process connection:falnges PN40 Housing / Ball: Stainless steel A182 F316 Ball bore: L-shape Seals:PTFE Operation:bare shaft.

Anti Blow-out Proof Design

Kelite ball valve adopts the design of stepped shaft with the gland. It is effectively that prevent the stem blows out from the top.

Three way ball's structure is simple and suitable for only 3 way ball valve. This is L type three way ball, another is T type.

Technical Specification

Design Basis GB API ASME
Design Standard GB/T 12237 /B/T 19672 API 608 /API 6D ASME B16.34
Face To Face GB/T 12221/ GB/T 19672 ASME B 16.10 / API 6D ASME B16.10
Connection End GB/T 9113 / ASME B 16.5/MSS SP-44/ASME B 16.47
Material NACE MR0175
Test & Inspection JB/T 9092 GB/T19672 API598/API6D ASME B16.34

Products Characteristics

1. Valve seat can be designed to four-side floating ball and trunnion ball with smooth fluid state and reliable seal

2. Blow-out proof stem: Prevent the stem blowing out caused by the abnormal increase of pressure.

3. The structure may be designed into side installing type, top installing type, and bidirectional seal, which ensures the flow direction won't be mixed.

4. Anti-static Design: This structure ensures the safe use under the explosive working conditions.

5. Two position(On and Off ) lock up design.

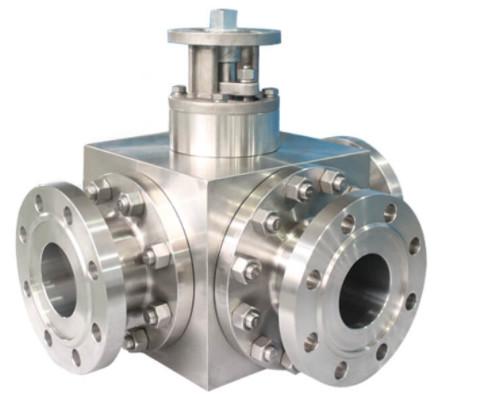

Standard Stainless Steel Floating Type Ball Valve , 3 Way Ball Valve

Material for Main Parts

Parts Name Material
Body A105, F304/L, F316/L, LF2, etc
Ball 25+ENP, A105+ENP, 304, 316, LF2+ENP, etc.
Stem 17-4PH,304,316, 1Cr13, 2Cr13, 410,420,LF2 etc.
Seat PTFE, RPTFE, DEVLON, PEEK, 304+ni55, 316+ni55, LF2+NI55, 304+STL,316+STL
O-Ring NBR,Viton,etc.
