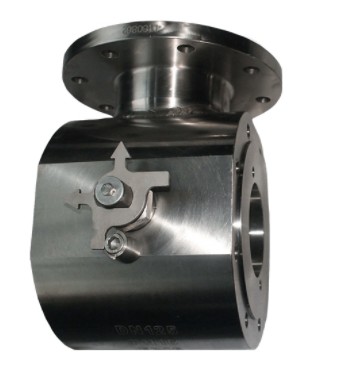

3 Way Ball Valve Side Antistatic Function Installed Type Top Installed Type
3 Way Ball Valve Side Antistatic Function Installed Type Top Installed Type
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-24", CL150-2500
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
40-80days
Packaging Details :
Plywood packing or fumigation packing
Size: :
NPS 2"~24"
Pressure Rating: :
Class 150~2500
Material: :
A105, LCB, CF8, CF8M, CF3,LF2, CF3M,316 ETC
Design Standard: :
API 608, API 6D, BS 5351, ASME B16.34
Face to Face: :
ASME B16.10, API 6D, BSEN 558
End Connection: :
ASME B16.5, BSEN 1092
Description

Tee Ball Valves Three way Ball Valves,side installed type and top installed type

Product description:

3 Ways Ball Valves,3 Ball valves are used to switch,mix and divide the flow of corrosive or non corrosive liquid,gas or powder mediums under the temperature -46ºC-200ºC. Upon opening and closing, the smooth flow channel effects less pressure loss.

Tee Ball Valves Three way Ball Valves

Function:

3 Ball valves are used to switch,mix and divide the flow of corrosive or non corrosive liquid,gas or powder mediums under the temperature -46ºC-200ºC. Upon opening and closing, the smooth flow channel effects less pressure loss, mkng operating quite babor-saving and maintenace fairy easy. It have"T "ype port and"L"type port.

Structural Characteristics:

1. Valve seat can be designed into four-side floating ball and trunnion ball, with smooth fluid sate and reliable seal.

2. The structure may be designed into side installed type and top installed type, with double sealing design, no series flow upon switch of flow direction.

3. Fire-safe, antistatisc and blow-out proof stem functions

4. Self relieving seat:

5. Emergency sealant injection system

6. Stem/bonnet extension for cryogenic service

Tee Ball Valves Three way Ball Valves

Technical Specification
Design Standard: API 608
Body material:

ASTM A216 WCB WCC; ASTM A217 WC1 WC6 WC9;

ASTM A351 CF8,A351 CF8M,ASTM A352 LC1 LCB LCC LC3Alloy Steel, Stainless Steel, Special Steel)
Nominal Pressure Class 150~2500
Nominal Diameter: 2"~24"
Operation Pneumatic actuator
End Connection: RF, FF, M, F, TG, RG
Face To Face: API 609
Working Temperature: ~+200ºC
Test And Inspection: API 598/ISO 5208
End flange dimension: ASME B16.5,ASME B16.47(API 605 ,MSS SP44)
Butt weld end dimension: ASME B16.25(BW)
NACE: NACE 0175
Certificate: ISO9001, ISO14001, ISO28001, TS, CE,TU
