Hydraulic Industrial Control Valves / Pressure Reducing Control Valve
Hydraulic Industrial Control Valves / Pressure Reducing Control Valve
Specifications
Brand Name :
Kelite Valve
Model Number :
DN32-DN600, PN10-PN16
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
30-70days
Packaging Details :
Plywood packing or fumigation packing
Size： :
DN32-DN600
Pressure Rating： :
PN10-PN16
Material： :
WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, CF8, CF8M, CF3, CF3M, CF8C,etc
Flange design :
API 6D, 608
Flange connection :
RF,FF
Inspection :
ISO 5752
Description

Hydraulic Pressure Reducing Water Pressure Reducing Control Valves

Specification:
For BS 4504 BS EN1092-2 PN10 / PN16/ PN25 flange mounting.
Face-to-Face dimension conforms to ISO 5752 / BS EN558.
Epoxy fusion coating.

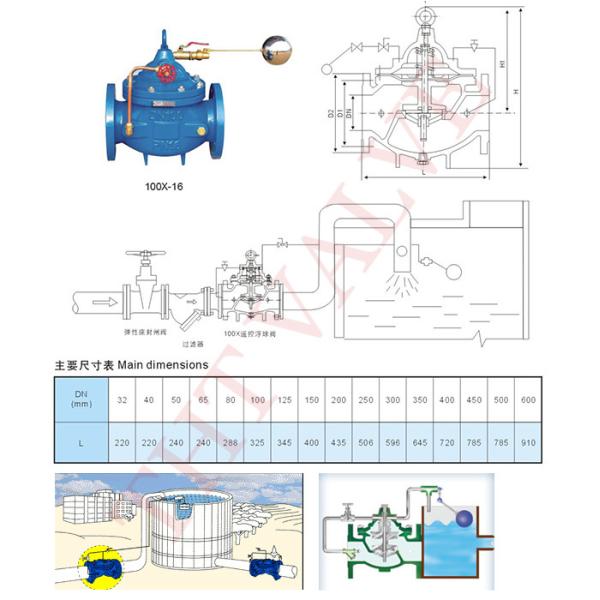

A float control valve maintains a preset water level in a reservoir or a water tank. In its simplest form a float valve is fitted with a float designed to control the top water level in the tank. A dual level float can be fitted to control the level between top and bottom levels. Float control valves can be remotely operated with an addition of a solenoid or a hydraulic relay.
Typical Applications


A top level float valve is typically used where water tanks are required to be full and where the tank is not filled up by a dedicated pump, a dual level float can be fitted in order to minimise pump starts and stops.
Hydraulic Industrial Control Valves / Pressure Reducing Control Valve

Manufactured to ISO 9001;
Available Valve sizes DN32~600;
Available MPA 1.5~2.5;
Available Up to -10ºC~ 80ºC;
Face-to-Face dimension conform to BS EN 558.
Flange drill is suitable for BS EN 1092-2 PN10/ PN16.
Test as ISO 5752.
Working pressure:
10 bar / 16 bar for PN10 / PN16.
Fast response time;
Fast shutdown on command;
Full unrestricted valve operation on tank filling;
Easily adjustable level settings
Low supply pressure options
Accurate Level Control
Completely Automatic Operation
Simple Operation
Maintenance Free


Mateiral list:

Part Material
Body/Bonnet Ductile iron / WCB
Disc WCB / Stainless steel
Diaphragm EPDM
Shaft Stainless steel
Pilot / Ball valve / Pipe Brass / Stainless steel
