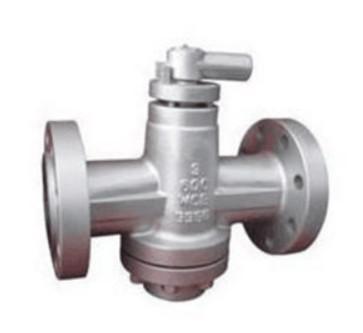

Short Type Steel Plug Valve , Pressure Balanced Plug Valves Venturi Type
Short Type Steel Plug Valve , Pressure Balanced Plug Valves Venturi Type
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-24"
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
40-80days
Packaging Details :
Plywood packing or fumigation packing
Size： :
2"-24"
Pressure Rating： :
CL150-CL1500
Material： :
WCB, LCB,CF8, CF8M, CF3, CF3M,A105,LF2
Design & Manufacturing Standard： :
API 6D、API 599、ASME B16.34
Face to Face： :
ASME B16.10, API 6D,API 599
End connection： :
ASME B16.5 ,ASME B16.25
Test and Inspection： :
API 598、ISO 5208、GB/T 26480、GB/T 13927
Operation method: :
Hand wheel, pneumatic drive unit
Description

Pressure balance type steel plug valve 2"-24" venturi type or Short type

Technical parameters and characteristics:

Product type ON/OFF
Product description Pressure balance type plug valve
Model plug valve
Nominal diameter NPS 2”～24”
Operating temperature -46℃～120℃
Nominal pressure CLASS 150～1500
Material Main material: A216 WCB,WCC; A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC; A494 CW-6MC,CU5MCuC,M35-1; A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN), etc.
Design standard API 6D,API 599,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.25,GB/T 9113,GB/T 12224
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields For systems of petrochemical, chemical, natural gas, LPG, gas, HVAC, food and pharmaceutical industries.
Other remarks 1 The sealing faces of valve seat and valve clack are build-up welded with hard alloy to improve the erosion resistance and extend the service life of valve.
Other remarks 2 The important feature of plug valve is that it is adaptive to multi-passage structure, so one valve can have two, three or even four flow passes.
Other remarks 3 Quick opening and closing, small flow resistance, and fast angular travel operation
Other remarks 4 The medium can flow in two directions, facilitating unlimited mounting direction and online repair.
Other remarks 5 Small switching moment, reliable sealing
Other remarks 6 Reversed plug design, the higher the pressure is, the better the sealing performance is.
Other remarks 7 Emergency injection function of valve stem
Other remarks 8 Injection hole and channel are provided on the valve body for injecting stop-leak compound between sealing faces.
