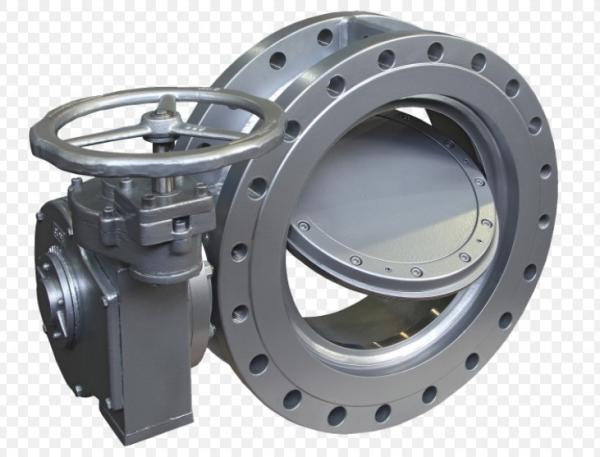

High Performance Eccentric Butterfly Valve , Metal Seated Butterfly Valve
High Performance Eccentric Butterfly Valve , Metal Seated Butterfly Valve
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-48", CL150-2500
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
30-60days
Packaging Details :
Plywood packing or fumigation packing
Size： :
NPS 2"~48"
Pressure Rating： :
Class 150~2500
Material： :
WCB, WCA, WCC,WC6, WC9, C5,C12, LCB, LCC, CF8, CF8M, CF3, CF3M, CN7M, CF8C,etc
Design & Manufacturing Standard： :
API 609, ASME B16.34, BSEN 593
Face to Face： :
API 609, BSEN 558
Flanged Dimenson: :
ASME B16.5 ,ASME B16.47, BSEN 558
Test and Inspection： :
API 598, BSEN 12266
Operation Method： :
Manual ,Worm Gear, Electric Actuator,Pneumatic Actuator
Description

API 609 metal to metal seat triple eccentric butterfly valve, 2"-48"


Applicable Standards:

DESIGN & MANUFACTURE CONFORM WITH: API609, MSS SP-67
CONNECTION DIMENSION CONFORMS WTIH: ASME B16.5, ASME B16.47
STRUCTURE & LENGTH CONFORMS WITH: API 609, MSS SP-67, ISO 5752
INSPECTION & TEST CONFORMS WITH: ISO 5208, API 598

Standard Features:

Kelite High Performance Butterfly Valve is from the family of quarter-turn valves. This valve is designed and manufactured to meet API 609 and ASME B16.34 specifications.

Design characteristics :

  • Compact structure, easy installation and disassembly, repair friendly and light weight.
  • It has a certain adjustment capability, and can be used as a control valve.
  • With the triple-eccentric structural design, the sealing face is separated as soon as opening, so the mechanical wearing and friction between two sealing faces is eliminated during the opening and closing of butterfly plate, the operation torque is lowered, and the service life is longer.
  • Good sealing performance of zero leakage.
  • Wide range of application - triple-eccentric metallic sealing butterfly valves have a wide range of temperature, pressure and diameter.

Technical parameters:

Product description Triple-eccentric butterfly valve
Model triple-eccentric butterfly valve
Nominal diameter NPS 2”～48”
Operating temperature -196℃～593℃
Nominal pressure CLASS 150～2500
Material Main material: A216 WCB,WCC; A217 WC6,WC9,C5,C12,C12A,CA15; A351 CF8,CF8M,CF3,CF3M,CF8C,CN3MN,CK3MCUN,CN7M; A352 LCB,LCC;A494 CW-6MC,CU5MCuC,M35-1；A890 4A(CD3MN),5A(CE3MN),6A(CD3MWCuN); ASME B 148 C95800,C95500 etc
Design standard API 609,ASME B16.34
Structural length ASME B16.10,GB/T 12221
Connecting end ASME B16.5,ASME B16.47,ASME B16.25,GB/T 9113
Test standard API 598,ISO 5208,GB/T 26480,GB/T 13927
Operation method Handle, worm, motor-drive unit, pneumatic drive unit
Application fields Used as control and cut-off equipment for smelting, chemical engineering, sewage engineering, environmental protection system and control subsystems of water plant, power plan and steel plant.
