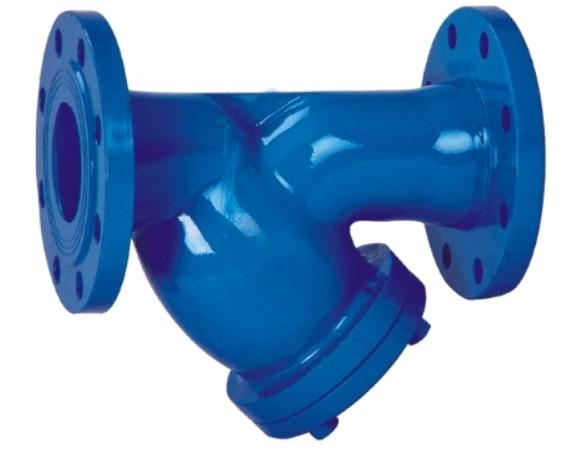

Cast Steel Y Strainer Basket Type T Type Cone Type Stainless Steel Screen
Cast Steel Y Strainer Basket Type T Type Cone Type Stainless Steel Screen
Specifications
Brand Name :
Kelite Valve
Model Number :
1/2"-20" DN15~DN500,
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
30-60days
Packaging Details :
Plywood packing or fumigation packing
Size： :
1/2"-20" DN15~DN500
Pressure Rating： :
PN10~PN40
Material： :
LCB, WC6, WC9,CF3M, C12,CF8, CF8M, CF3,CF3M,etc
Temperature： :
-196°~593°
Design & Manufacturing Standard： :
API, DIN, BS 1414, ASME B16.34
Face to Face： :
ASME B16.10, API 6D, BSEN 558
End Connection： :
ASME B16.5, ASNE B16.47, DIN,BSEN 1092
Operation Method： :
Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
Description

Cast Steel Y type strainer, Basket Type & T Type & Cone Type optional

Y-type Strainer

A strainer is a device which provides a means of mechanically removing solids from a flowing fluid by utilizing a perforated or wire mesh straining element. Strainers are an in expensive means of protecting downstream mechanical equipment such as condensers,heat exchangers,pumps,compressors,meters,spray nozzles turbines,steam traps, etc.. from possible damage due to debris such as rust, pipe scale, sediment, and/or other solids.

Kelite Valve is specialized in manufacturing strainer with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Design Feature

Y or T - pattern
Bolted cover
Drain plug
Stainless steel screen
Flange, BW, Thread and SW Ends

Product Range

Size

:

1/2~20”(DN15~DN500)

Rating

:

150 ~ 600LB(PN1.6~PN10)

Body Materials

:

Carbon Steel,Stainless Steel

Screen Material

:

304,316

Specification

Design: API, DIN
Face to Face: API, DIN3202
End Flange: API, DIN2543,DIN2544,DIN2545
Test: API, DIN3230

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality in the market.
