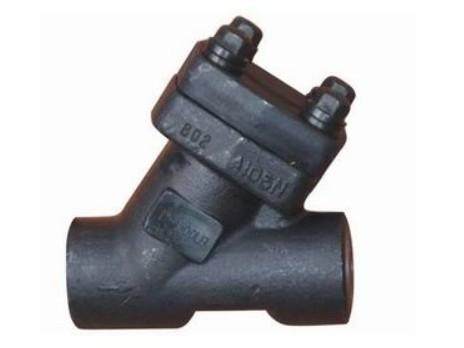

Forged Y Strainer Socket Screw Bonnet Bolt Bonnet Buttwelded Bonnet
Forged Y Strainer Socket Screw Bonnet Bolt Bonnet Buttwelded Bonnet
Specifications
Brand Name :
Kelite Valve
Model Number :
1/2"-2", CL150&800
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000-5000PCS per month
Delivery Time :
7-10days
Packaging Details :
Plywood packing or fumigation packing
Size： :
NPS 1/2"~2"
Pressure Rating： :
Class 150&800
Material： :
A105,LF2,F51,304,316,ETC
Design & Manufacturing Standard :
API602, bs5352, ASME B16.34,
Face to Face： :
ASME B16.10, EN 588
Flanged Dimenson： :
ASME B16.5(BSEN 1092)
Test and Inspection： :
API 598
Flange :
SW,NPT
Description

1/2"-2" CL150,800 industrial strainer, Y type forged strainer

Kelite Valve is specialized in manufacturing strainer with following good characteristics: good sealing performance, reliable safety guarantee, Long working life. completitive cost and 24 hours after sale services and etc.

Sizee: NPS1/2～NPS2
Rating: Class150,CL800,
Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on

Standard:

1. Design Standard: API602,BS5352

2. Material Pressure-Temperature Standard:ASME B16.34

3. Face to Face Dimension Standard:ASME B16.10

4. Flange dimension standard: ASME B16.5

5. Socket Welded Ends conform to ANSI B16.11

6. Screw ends conform to ANSI B1.20.1

5. Inspection and Test Standard:API598

Descripition:

1. Screw bonnet, Bolt bonnet, Butt-Welded bonnet

2. Full port and Reducing Port

3. A threaded and Pressure seal bonnet

4. Materials conform to ANSI/ASTM

Specifications:

Material of main Parts Body A105/A105N, LF2
Screen SS304/SS316
Gasket Graphite
Cover A105/A105N, LF2
Drain plug A105/A105N, LF2
Operation /
Working Temperature -29 to 550℃
Working Medium Water, Oil

Dimmension:

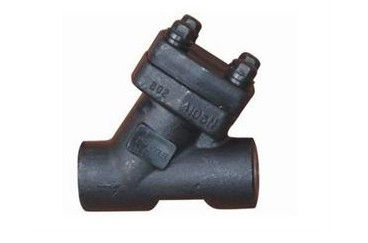

Forged Y Strainer Socket Screw Bonnet Bolt Bonnet Buttwelded Bonnet

SIZE 1/2" 3/4" 1" 11/4" 11/2" 2"
L 98 98 111 140 140 155
H 70 70 100 110 120 120

We are committed to offering porducts that meet a wide range of appications and requirments. We continually improve our product line by introducing new products and enhancing exsiting designs. Providing our customers with the best quality on the market.
