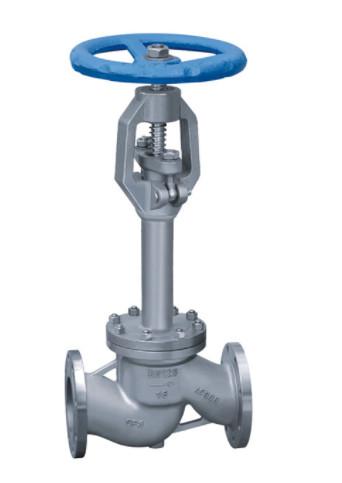

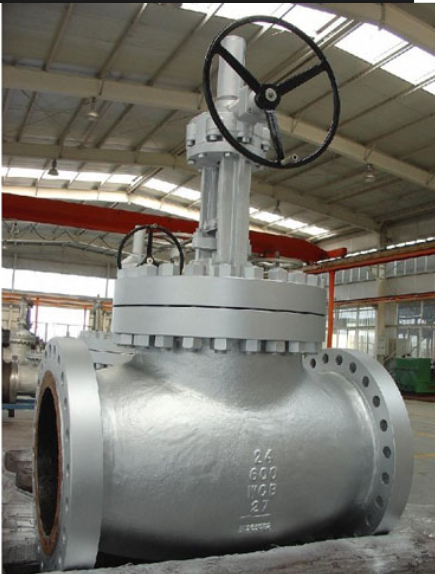

Carbon Steel Low Temperature Valves / Cryogenic Globe Valve OEM Service
Carbon Steel Low Temperature Valves / Cryogenic Globe Valve OEM Service
Specifications
Brand Name :
Kelite Valve
Model Number :
2"-24",CL150-2500
Certification :
API, ISO, CE, GOST, TS, BS1873, BS5351, API 6D,600,602,609, ASME B16.34, API 6FA, API607 etc
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2000-5000PCS per month
Delivery Time :
50-70days
Packaging Details :
Plywood packing or fumigation packing
Size: :
NPS 2"~24"
Pressure Rating: :
Class 150~2500
Material: :
CF8、LCC、CF8M、LCB Etc.
Design & Manufacturing Standard: :
BS 6364, API 600, API 6D,ASME B16.10, ASME B 16.5
Face to Face: :
ASME B16.10, API 6D
End Connection: :
ASME B16.5, ASME B16.47, ASME B16.25
Test and Inspection: :
API 598, BS6364
Operation Method: :
Manual ,Worm Gear, Electric Actuator, Pneumatic Actuator
Description

Low temperature valves of globe valve, good sealing and avoid potential rupture

The material of Cryogenic Globe valve should be ensured to have a good cryogenic property, especially its strength against cryogenic impact. Right trim material with enough anti cryogenic impact strength should be chosen to avoid potential rupture. The alloy material containing C & Cr element would lose the strength of anti cryogenic impact with quick speed when temperature comes to below -20 ℃.

Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on

Material: Carbon Steel,Stainless Steel,Alloy Steel,Duplex Stainless Steel
Operation: Manual,Gear Operated,Electric Operated,Pneumatic Operated
Applicable: Oil,Chemical,Natural Gas,Petrochemical,Coal Chemical and so on

Cryogenic globe valve standard

Design and manufacture standards:BS 6364, BS 1873, API 602, GB/T 24925
Face to face dimensions standards:ASME B 16.10, GB/T 12221
Connection ends standards:ASME B 16.5, GB, JB, HG, SH, BS, DIN, JIS and etc
Testing inspection standards:API 598, BS6364, GB/T 13927, GB/T 26480, JB/T 9092

Product type ON/OFF
Product description low temperature globe valve
Model DJ41H-low temperature globe valve
Nominal diameter 2”～24”(50mm～600mm)
Operating temperature -196℃～300℃(the range of service temperature may vary for different materials)
Operating pressure 150-2500 CLASS
Material Main material: A351 CF8,CF8M,CF3,CF3M;A352 LCB,LCC, etc.
Design standard BS 1873 ,BS 6364,ASME B16.34,GB 12235,GB 12224
Structural length ASME B16.10
Connecting end ASME B16.5,GB 9113
Test standard API 598,ISO 5208,JB/T9092,GB/T13927,BS 6364
Operation method Elevating hand wheel, non-elevating hand wheel, bevel gear, motor drive unit, pneumatic drive unit
Application fields/td> For application in fields such as electric power industry, petroleum refining, petrochemical engineering, offshore oil, tap water engineering in urban construction, chemical engineering, etc.
Other remarks The extension dimensions of valve stem and bonnet may vary according to different temperature ratings.
Other remarks 2 As valves subject to a temperature ≤-101℃ shall be protected against subzero deformation, the main parts are subzero treated.
Other remarks 3 The sealing faces of valve seat and valve clack are build-up welded with hard alloy to improve the erosion resistance and extend the service life of valve.
Other remarks 4 The friction between sealing faces is smaller during opening and closing, facilitating a longer service life.
Other remarks 5 The valve clack is of taper, needle, ball and parabola types, and can be used to adjust the flow rate.
Other remarks 6 SS+ graphite or metallic seal or pressure self-sealing is adopted between valve body and bonnet for reliable sealing.
Other remarks 7 Rising stem structure, making the valve switch position be clear at a glance
Other remarks 8 The valve stem thread will not come into contact with the medium, so the corrosion of medium to the thread is reduced.
Other remarks 9 Small switching moment, reliable sealing
Other remarks 10 The valve clack can be machined into parabola, spherical, needle shapes, etc. according to the requirement of customer. It can be used for adjustment (rough adjustment) on pipeline.
Other remarks 11 Short stroke is suitable for application at positions subject to frequent opening.
Other remarks 12 Y-shape stop valve – the streamline flow pass has a very high flow coefficient, and can maximally reduce the pressure drop through the system.
Other remarks 13 Through improving the structural design and selecting reasonable packing structure and qualified packing supplier, the valves can meet the Class A sealing test requirements of ISO 15848 FE.
