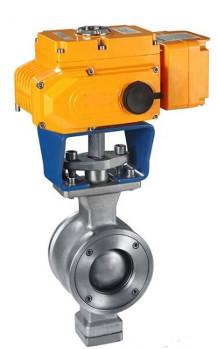

Flanged V Type Floating Type Ball Valve Fixed Ball Core DN25 - DN500
Flanged V Type Floating Type Ball Valve Fixed Ball Core DN25 - DN500
Specifications
Brand Name :
Kelite Valve
Model Number :
1"~6",PN10 PN16 PN25 PN40
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
1"~6"
Pressure :
PN10 PN16 PN25 PN40
Material :
Stainless Steel
Certifcate :
CE, API,ISO
Operation :
Handle
name :
segmented ball valve
Description

Flanged V Type Floating Type Ball Valve Fixed Ball Core DN25 - DN500

SEGMENT BALL VALVE FLANGE 2WAY

Specification:

1.Nominal diameter: DN25-DN100
2.Body material: WCB, 304, 316, 316L
3.Connection: wafer type DN25-DN200
4.Flange type DN25-DN500
5.Pressure class: PN1.6-4.0MPa
6.Structure: Fixed ball core

Valve components.

1.Seat sealing: PTFE, Alloy Steel (Surface welding hard alloy,chrome, tungsten nitride)
2.Core material: 304,316, 316L (Surface hardening treatment:
3.Tungstennitride, Chrome plated
4.Stem material: 17-4PH
5.Suitable medium: Water, Oil, Solid particles and Fiber media

Design and manufacturing standards:

1.Design and manufacture: GB/T12237/1989, ASME B16.10,API608
2.Structure length: GB/T12221, ASME B16.10
3.Connection size: GB9113.1, ASME B16.5
4.Pressure testing: GB/T13927-1992, API598, API6D

Performance:

1.Adjustable range: 100:1
2.Leakage level: metal seal: less than 0.001% soft sealing :less than 0.00001%
3.Return difference: less than full stroke 1% (with locator)
4.Less than full stroke 3-5%(without locator)
5.The basic error: less than full stroke +1%(with locator)
6.Less than full stroke +5%(Without locator)

Select us :

  • Design team: With professional design staff, Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
