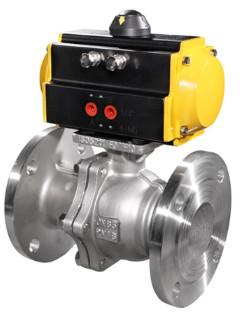

Adjustable Pneumatic Ball Valve / Segmented Ball Valve Stainless Steel Material
Adjustable Pneumatic Ball Valve / Segmented Ball Valve Stainless Steel Material
Specifications
Brand Name :
Kelite Valve
Model Number :
1"~6",PN10 PN16 PN25 PN40
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
1"~6"
Pressure :
PN10 PN16 PN25 PN40
Material :
Stainless Steel
Certifcate :
CE, API,ISO
Operation :
Handle
Description

Stainless Steel Flanged V Type Ball Valve Adjustable Pneumatic Ball Valve

SEGMENT BALL VALVE FLANGE 2WAY

Specification:

1.Material:Stainless Steel, WCB

2.Temperature of Media:Medium Temperature, t<80°C

3.Pressure:Medium Pressure, PN1.6 to 6.4MPa, 232 to 928PSI

4.Power:Pneumatic

5.Media:Water, Air, Gas, Oil, Liquid, Steam, Air, Gas, Oil, Liquid, Steam

6.Port Size:1/2"-6", DN15-DN150

7.Structure:Ball

8.Standard or Nonstandard:Standard

9.Acting Mode:Double Acting, Single Acting (Spring Return)

10.Air Supply Pressure:2.5 to 8bar

11.Sealing Material:NBR, EPDM, FKM (VITON), PTFE (TEFLON)

12.End Connection:Female Screw Thread, Flange End

Technical Data:

Item
Penumatic 2 way Flange Ball Valve
Applicable Standards
GB, DIN, ANSI, ASME, JIS, API
Size Range
DN15 to DN150, 1/2" to 6"
Acting Mode
Double Acting, Sping Return (Single Acting) are Available
Air Supply Pressure
2.5 to 8bar
Operating Pressure
Low Pressure, 1.0 to 1.6MPa (145 to 232PSI)
Output Torque
14 to 1170Nm
Lifespan
1,000,000 (1 Million) Times
Angle of Rotation
90° ±4°
Shell Material
Aluminum Alloy Extruded
Body Material
Carbon steel,stainless steel
Sealing Material
NBR, EPDM, FKM (VITON), PTFE (TEFLON)
Core Material
Stainless Steel
Structure
Midline
End Connection
Wafer, Flange End
Applicable Media
Control of Water, Air, Gas, Oil, Liquid, Steam
Temp. of Media
Range from -10 to +80°C (14 to 176°F) with NBR Sealing
Ambient Temp.
Standard Type: -20 to +80°C (-4 to 176°F)
Optional Accessories
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application
Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power Industries
Lubrication
There is no need for lubrication for standard type under normal operating conditions. Special lubricants should be used under low or high temperature operating conditions

Select us :

  • Design team: With professional design staff, Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
