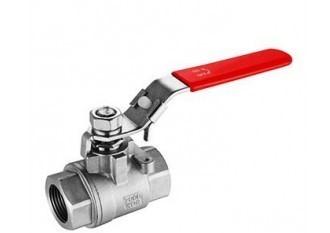

PN40 Pressure Two Piece Ball Valve PTFE RPTFE Seat Cast Floating Ball Valve
PN40 Pressure Two Piece Ball Valve PTFE RPTFE Seat Cast Floating Ball Valve
Specifications
Brand Name :
Kelite Valve
Model Number :
2"~4",PN40
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
2"~4"
Pressure :
PN40
Material :
Cast Iron Steel
Certifcate :
CE, API,ISO
Operation :
Lever,Gear
Description

BALL VALVE TWO PIECE PTFE RPTFE FLOATING BALL VALVE

Features:

1.Blow-out Proof Stem.
2.Pressure Balance Hole in Ball Slot.
3.Various Thread Standards Available.
4.Lock device.
Standards:
1.Design: ASME B16.34.
2.Wall Thickness: ASME B16.34.
3.Pipe Thread: ASME B1.20.1.BS21.
4.DIN 2999/259, ISO 228/1.
6.Inspection & Testing: MSS SP-110, EN 12266.

Material:

1.Body: CF8M, CF8, WCB.
2.Body Gasket: PTFE.
3.Cap: CF8M, CF8, WCB.
4.Seat: PTFE, RPTFE, PPL.
5.Ball: CF8M: CF8.
6.Stem: SUS316: SUS304.
7.Thrust Washer: PTFE.
8.Stem Packing: PTFE: RPTFE.
9.Packing gland: SUS304.
10.Sprinq Washer: SUS304.
11.Stem Nut: A193-B8.
12.Lockinq Device: SUS301.
13.Handle: SUS304.
14.Handle Cover: Plastic.

Select us :

  • Design team: With professional design staff, Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
