Industrial Hydraulic Ball Valve Stainless Steel Flange End Class DIN / ANSI Standard
Industrial Hydraulic Ball Valve Stainless Steel Flange End Class DIN / ANSI Standard
Specifications
Brand Name :
Kelite Valve
Model Number :
2"~24",Class150/300
Certification :
ISO, CE,API,
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
2"~24"
Pressure :
Class150/300
Material :
Carbon Steel/Stainless Steel
Standard :
DIN/ANSI
Operation :
Lever,Gear
Description

API6D 2PC Carbon Steel/Stainless Steel Flange End Class 150/300 (lb) Industrial Hydraulic Control Ball Valve

Ordinary Pressure Sanitary Ball Valve

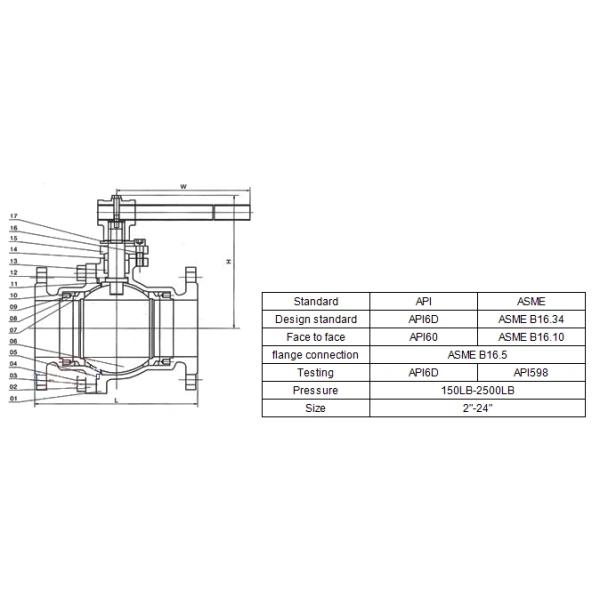

Technical Data :

Pressure DN L H W(kg) Pressure DN L H W(kg)
(Class) NPS(in) RF BW (Class) NPS(in) RF BW
150LB 2" 178 216 107 12 300LB 2" 216 216 107 15
2 1/2" 191 241 125 16 2 1/2" 241 241 125 24
3" 283 283 152 22 3" 283 283 152 30
4" 229 305 178 35 4" 305 305 178 55
5" 356 381 300 58 5" 381 381 300 87
6" 394 457 330 74 6" 457 457 330 118
8" 457 521 398 205 8" 521 521 398 255
10" 533 559 495 322 10" 559 559 495 370
12" 610 635 580 460 12" 635 635 580 533
14" 686 762 625 576 14" 762 762 625 640
16" 762 838 670 864 16" 838 838 670 1030
18" 864 914 698 1280 18" 914 914 840 1542
20" 914 991 840 1600 20" 991 991 840 2100
24" 1067 1143 1050 3540 24" 1143 1143 1050 4200
28" 1245 1346 1100 4500 28" 1346 1346 1100 5300
32" 1372 1542 1150 5940 32" 1542 1542 1150 7860
36" 1542 1727 1247 7540 36" 1724 1727 1247 8684
40" 1753 1880 1374 9320 40" 1887 1880 1374 10300

Specifications:

Industrial Hydraulic Ball Valve Stainless Steel Flange End Class DIN / ANSI Standard

Select us :

  • Design team: With professional design staff, Sample order is always welcomed
  • Professional factory: Specializing in manufacturing valves for many years, competitive price with good quality, the deadline usually is 30-45 days
  • Sample: We can offer sample in 3 days, but the shipment charge is usually beared by customerside, the fee will be deducted from agreed offical order.
  • Quick response to your needs: We will answer within 24 hours, Welcome to contact with us if you have any problems, We are looking forward to cooperating with you.
