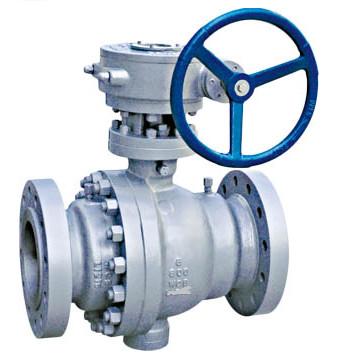

Full Port Trunnion Mounted Ball Valve Forged Steel Anti Static Device ISO 5211 Direct Mounting Pad
Full Port Trunnion Mounted Ball Valve Forged Steel Anti Static Device ISO 5211 Direct Mounting Pad
Specifications
Brand Name :
Kelite Valve
Model Number :
Full port,2"~56",CLASS 150/300/600/900/1500
Certification :
ISO, CE,API
Place of Origin :
China
MOQ :
1PC
Supply Ability :
3000-8000PCS per month
Delivery Time :
10-80days
Packaging Details :
Plywood packing or fumigation packing
Size :
2"~56"
Pressure :
CLASS 150/300/600/900/1500
Material :
Steel
Certifcate :
CE, API,ISO
Operation :
Lever
Description


BALL VALVE FULL PORT FLANGE

Specifications:

  1. Full port, 2"~56" (DN50~DN1400)
  2. W. P.: PN10/16/25/40,CLASS 150/300/600/900/1500
  3. W. T.:-20℃ ~200℃ (-4℉~392℉)
  4. Investment casting / Forged steel
  5. Blow-out proof stem
  6. Anti-static device
  7. ISO 5211 Direct mounting pad
  8. Flange dimension :
    ASME B16.5 CLASS 150/300/600/900/1500, EN 1092-1
  9. Face to face:
    ASME B16.10 CLASS 150/300/600/900/1500, API 6D

ITEM PARTS MATERIAL
1 BODY ASTM A351-CF8M ASTM A216-WCB
2 CAP
3 BALL ASTM A182-F316 ASTM A105+ENP
4 STEM ASTM A182+F6a
5 SEAT RTFE
5a SEAT RETAINER ASTM A182-F316 ASTM A105+ENP
6 O-RING FPM
7 FIRE SAFE RING GRAPHITE
8 SPRING INCONEL X 750
9 GASKET GRAPHITE
10 NUT ASTM A194-8M ASTM A194-2H
11 STUD ASTM A193-B8M ASTM A193-B7
12 ANIT-STATIC PRING INCONEL X750
13 GLAND ASTM A182-F316 ASTM A105+ENP
14 TOP FLANGE ASTM A182-F316
15 GREASE NJECTION SS 316 AISI-1025+Zn
16 VENT VALVE
17 GREASE NJECTION
18 DRAIN VALVE
19 GEAR BOX -
