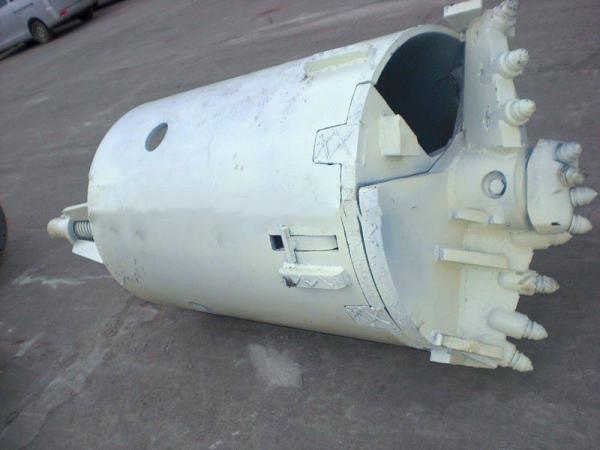

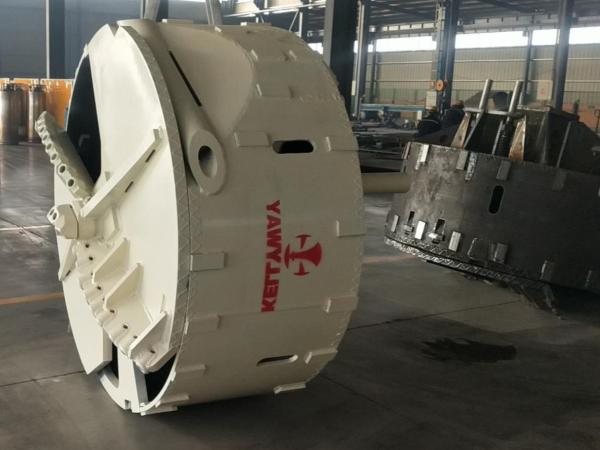

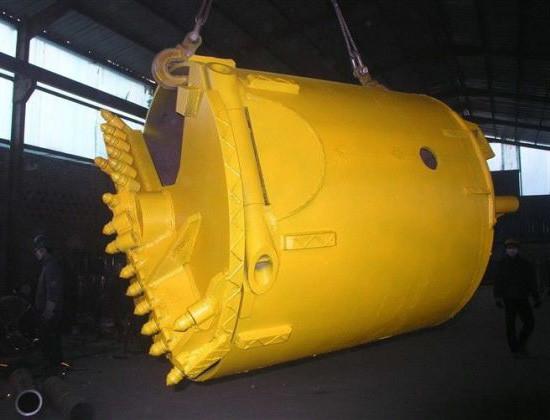

Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling
Specifications
Brand Name :
Kellyway, Kellyway
Place of Origin :
Hunan, China,
MOQ :
1 Piece/Pieces
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5 Piece/Pieces per week
Delivery Time :
Within two weeks after receiving the payment.
Packaging Details :
Safety
Kelly Box Type :
130,150,200mm
Application :
foundation drilling
Teeth type :
B47K22H bullet teeth
Machine type :
Rotary Drilling Rig
Video outgoing-inspection :
Provided
Color :
as customer requested
Condition :
100%new
Material :
Q345B
Port :
Tianjin, Shanghai, Shenzhen
After-sales service provided :
Online support,Video technical support
Processing type :
Forging
Product name :
drilling bucket
Type :
Customized Earth/Soil/Clay Drilling Bucket
Description

Rock Drilling Machine Tools Double Cutting Rock Bucket Diameter 600 mm - 3000 mm For Foundation Piling

Diameter
D(mm)		 Height
H(mm)		 Bucket
Thickness T(mm)		 Base/Cutting Plate
Thickness T1/T2(mm)		 Bullet Teeth
number		 RP4 Teeth
number		 Weight
(kgs)
φ600 1200 20 40/40 6 687
φ800 1200 20 40/50 9 963
φ1200 1200 20 40/50 13 1675
φ1500 1200 20 40/50 16 2310
φ1800 1000 20 50/50 17 4 3332
φ2000 800 20 50/50 18 4 3868
φ2500 800 25 50/50 24 4 5791

Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling

The Advntages

  1. They are manufactured in different versions (double cutting/ single cutting/soil bucket/ clean bucket/ clay bucket) according to the different systems of keeping of the removed or exhaust material and according to the kind of the ground.
  2. All the components are made with high resistance steel and welded with appropriate processes.

Hunan Kellyway Machinery Co., Ltd was founded by the main team which is with up to ten years’ experience on foundation works and piling machinery.

  1. Kellyway is committed to manufacture and supply most reliable and highest cost-performance products for piling works including Kelly Bars, Drilling Tools and Drilling teeth.
  2. Kellyway is working on provide the one-stop piling solutions for our domestic and global customers and we are dedicated to be your best partner for your piling works from China.

Kellyway soil and rock drilling buckets are made from the highest grade materials and boast many practical features

Their dimensions can be changed on Client needs and they are available on request:

· Kellybox 130, 150, 200 mm

· Cutting ring with staggered arrangement of bullet teeth

· Screw-on type bullet teeth system

· Easy replacement of drilling teeth with suitable tools.

· Outside helix and bullet teeth to optimize drilling performance

The double open bottom design allows the operator to open the bottom plate either manually or automatically. Choose from dirt, rock or clean-out drill bottoms.

Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling

Packageing

1. Wrapped with plastic film. 2. Fixed with iron support, wheel or pallet when necessary. 3. Packed with wooden cases

Height 1200mm Diameter 1200mm Rock Drilling Bucket For Foundation Piling

Our service

1. Prompt delivery; Best after-sale service;

2. The products could be produce according to customer's requirements; Inquiries are typically replyed within 24 hours

FAQ

Q1. Do you accept sample order?
Yes sure, please contact us for details.

Q2. How does your company control the quality?

Quality first. In order to guarantee high quality for our products.

Kellyway makes a serious inspection for all products and raw materials in strict procedure.

Q3. What is the lead time?

Usually the lead time is 7-10 days after receipt of your payment.

Q4. What kind of drilling tools can we provide?

We can provide drilling tools for almost all the brand rotary drilling rig, In addition to the above model specifications, our company can produce special specification products to customer requirements.
