Specifications
Brand Name :
KERONG
Model Number :
KR-S98E
Certification :
CE/RoSH/FCC
Place of Origin :
China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
50,000 pieces per month
Delivery Time :
5-15 days working time
Packaging Details :
The material of Package: K=K Reinforcement Carton;Carton:60PCS/CTN or customize according to customers' requirements
Product Name :
Low Power Consumption Electric Lock
Model :
KR-S98E
Material :
430 stainless steel+ABS+PC
Power consumption :
0.75W
Working Current :
100mA@12V
Working Voltage :
3.5V-8V
Size :
98*66*13.3 mm
Weight :
175g
Surface treatment :
Passivation
Reaction time :
Within 300ms
Door Weight :
4KG-50KG
Description

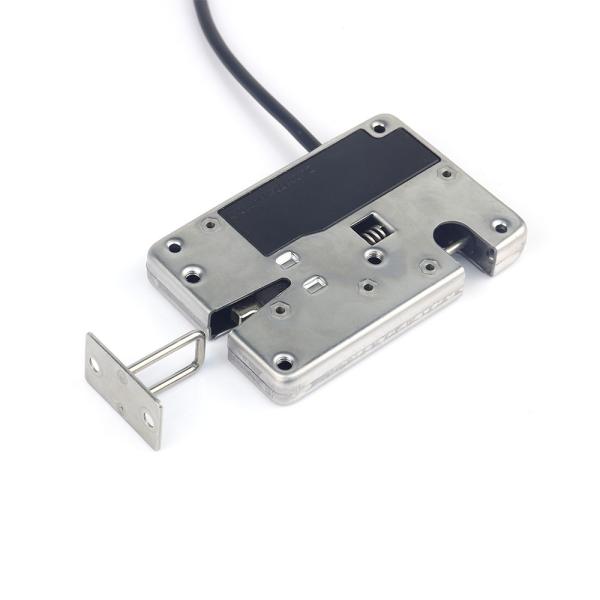

430 Stainless Steel 5V 1.75W Electric Motor Lock For Metal Locker

Product parameters

Model KR-S98E
Size 98*66*13.3 mm
Name Low Power Consumption Electric Lock
Weight 175g
The material 430 stainless steel+ABS+PC
Working voltage DC3.5V~DC8V
Working current 12V/100mA
Maximum power 0.75W
Response time Less than 300ms
Working temperature -40℃ ~ +65℃
Working humidity 5% ~ 85%RH
Working life 500,000 times
Door weight 4KG~50KG
Test Salt spray testing 48 hours
Usage Delivery cabinet /Phone locker/Fresh locker/Gym locker/ Vending machine etc
Certification CE; FCC; RoHS
OEM Accepted

Product Main Features

1. Motor drive, more stable, lower power consumption, support 12V, and 24V.

2. Lock shells are made from deactivated 430 stainless steel, force resistance: 300kgs

3. IP66 Waterproof. All electronic parts are protected in the sealed ABS box.

4. Built-in push block helps push the door, thrust can be adjusted.

5. Lock hook detection function.

6. Mechanical emergency lever, can be unlocked manually in the event of power failure.

7. AWG24 wires with PVC protecting tube.

8. Support customizing wires and terminals.

Product Details

430 Stainless Steel 5V 1.75W Electric Motor Lock For Metal Locker

430 Stainless Steel 5V 1.75W Electric Motor Lock For Metal Locker

Models +,-Power Door magnetic detection op Rod Door weight Energizing recommendations Tensile strength
KR-S91 YES YES Built-in 4~50KG 400ms~2s 370kgf
KR-S98S YES Not having Built-in 4~50KG 400ms~2s 200kgf
KR-S66N YES Not having External 0.5~10KG 400ms~2s 270kgf
KR-S98C YES Not having Built-in 0.5~10KG ＜800ms 300kgf

Product Applications

Our products KR-S98E electronic locker lock is used in parcel cabinets, vending kiosk locker, postal cabinets, phone locker, etc.

430 Stainless Steel 5V 1.75W Electric Motor Lock For Metal Locker

Our Advantages

  • KERONG company are special in cabinet lock for nineteen years, have professional R&D term and aftersale term. And we will offer whole professional service from pre-sale to after-sale.
  • Accept payment by L/C, D/A, D/P, T/T, Western Union, MoneyGram, PayPal, various payment methods meet your different needs.
  • KERONG highly welcomes OEM and ODM orders.
