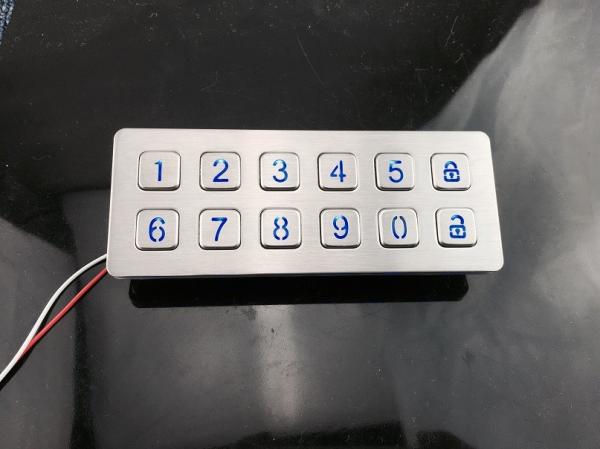

higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
higher quality 6X2 Layout numeric Metal Keypad With 12 flat key buttons for access control
Specifications
Brand Name :
CT
Model Number :
CTKPS21B-12
Place of Origin :
China
MOQ :
1
Price :
1
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 pcs per week
Delivery Time :
15 days after payment
Packaging Details :
60 pcs per ctn
keys :
12
materials :
304 stainless steel
key travel :
0.6mm
life span :
500,000 cycles
Leds :
blue,yellow,green,red
interface :
USB or pinout connector
layout :
6X2
contact :
metal dome
cusotmized letter :
yes
mounted :
panel mounted or rear mounted
Voltage :
3-24V
water sealed :
IP65
Interface :
USB or male pin out connector
Description

metal keypad,backlit keypad,stainless steel keypad,metal keyboard,numeric keypads,digital keypads,telephone keypad,min keypad,millitary keypad,telephone entry keypad,inox keypads

Main Features:

Keys and frame made of imported 304 stainless steel

16 keys: 10 numeric keys and 6 function keys

LED can be yellow,blue,white and green

This keypad with the function of waterproof, against corrosion,shake-proof, bombproof,falling raining,

hose-directed water and vandal resistant, used in access control system and calling equipment.

IK Protection Class DIN EN 50102:IK07

Mechanical and Performance Data:

Switch Contact Material: Gold Technology of the contact, Epoxy resin PCB.

Wide voltage input: 5V DC

LED voltage input :3VDC-24V

Key lifetime > 600,000 cycles per key

Keypad layout:Matrix or USB

Running lifetime > 5 years(without external power supply)

Interface:XH connector and male pins connector

Dimensions: 87.5*91.5. mm

Environment Requirements:

Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Operating temperature range: 0℃ - 60℃

Storage temperature range: –25℃ - 80℃

Relative humidity: 30%～90%

Atmospheric pressure: 60～106 KPaProtection Level: IP65(front panel)

Applications:

A: unsupervised or semi -supervised positions of varied access control systems,security system, household applications.

B:Industry application.

C: shopping malls, hotels, airports, railway stations and other public areas,

D: Inquiry self-service terminal ,Ticket vending machines, renting,

gas stations, Internet public telephone ,video telephone etc.
