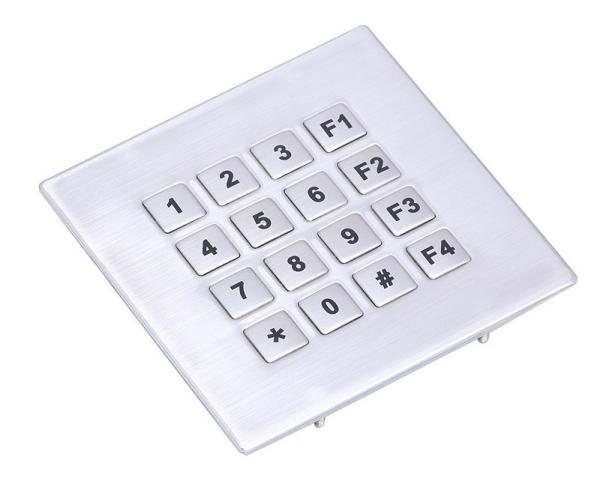

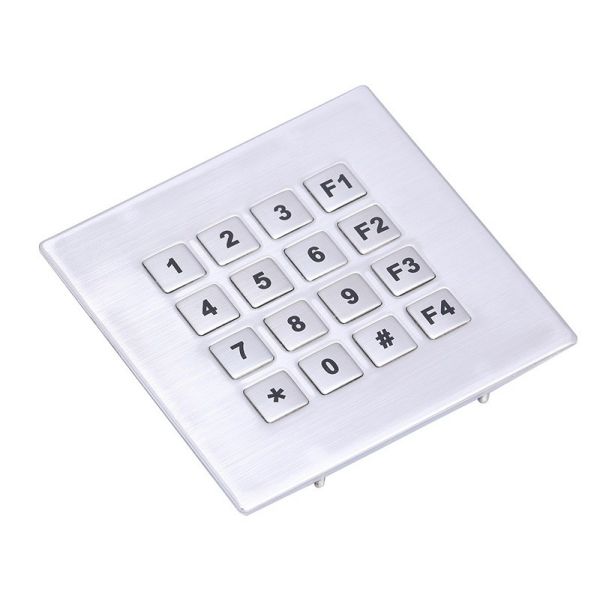

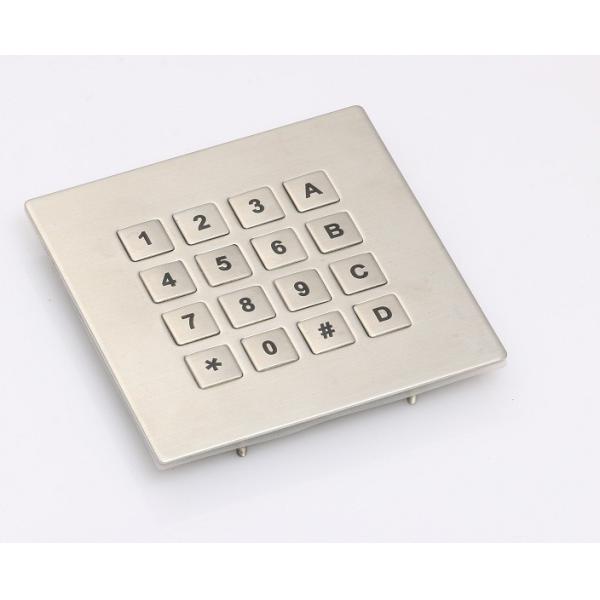

IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
Specifications
Place of Origin :
China
Brand Name :
CT
Model Number :
CTKPS08-16
MOQ :
1
Price :
1
Packaging Details :
60 pcs per ctn
Delivery Time :
15 days after payment
Payment Terms :
TT or WU
Supply Ability :
5000 pcs per week
material :
304 stainless steel
key travel :
0.45MM
interface :
male pin out connector
layout :
4X4
cusotmized letter :
yes
waterproof grade :
IP68
key size :
12.5*12.5mm
keypad size :
102*102MM
gasket :
Yes
mounted :
panel mounted
Description

Main Features:

Keypad made of high quality stainless steel,Customizable layout, dimension and installation design.

16 keys: 10 numeric keys and 6 function keys

Dustproof, waterproof, against corrosion,shake-proof, pickproof, drill-proof, bombproof,falling raining, splashing

hose-directed water and vandal resistant, operation under hostile environments.

IK Protection Class DIN EN 50102:IK07

Mechanical and Performance Data:

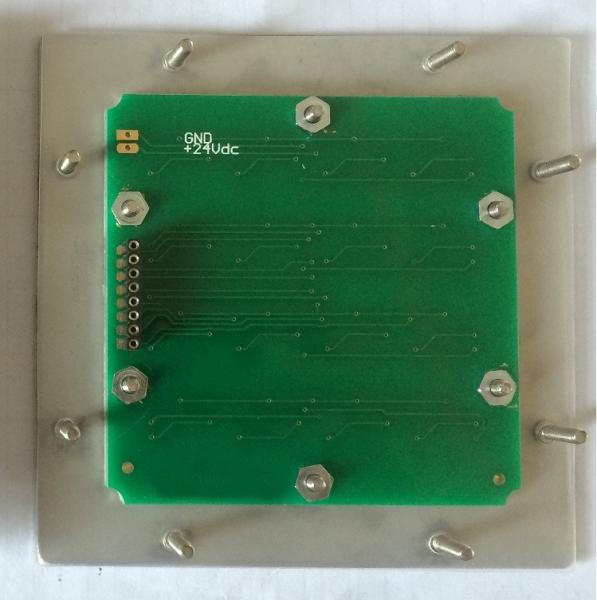

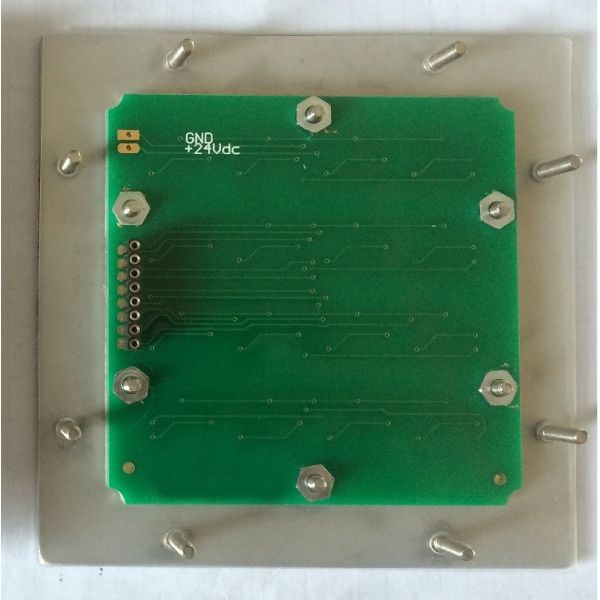

Switch Contact Material:Gold-on-Gold key switch technology with metal dome PCB.

Lettering: laser engraving

Front panel: brushed stainless steel

Wide voltage input: 5V DC

Key lifetime > 2,000,000 cycles per key

Force on keys: 2.0 N

Key travel: :0.45mm

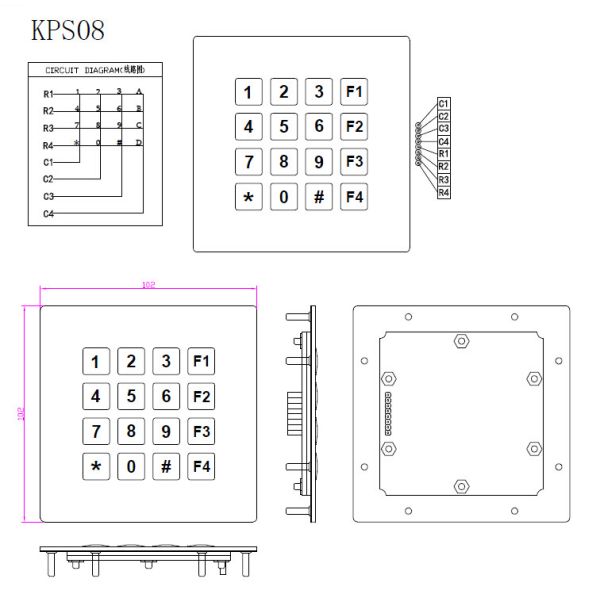

Keypad layout:Matrix

Running lifetime > 5 years(without external power supply)

Interface:USB,PS/2, XH connector and male pins connector

Dimensions: 102.0*102.0 mm

Environment Requirements:

Only the front panels shall be exposed to outdoor climate. The panels are dustproof, waterproof, shake-proof, pickproof, drill-proof and bombproof.

Operating temperature range: 0℃ - 60℃

Storage temperature range: –25℃ - 80℃

Relative humidity: 30%～90%

Atmospheric pressure: 60～106 KPaProtection Level: IP67(front panel)

IP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone setIP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone setIP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone setIP68 waterproof stainless steel brushed metal keypad with 16 key buttons for rugged telephone set
