Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Specifications
Brand Name :
RONGSHENG
Model Number :
10101-52-7
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
400 rolls
Flexibility :
Flexible
Thermal Conductivi :
0.17
Length :
7200mm
Tensile Strength :
0.04MPa
Usage :
Industrial, Commercial, Residential
Acid Resistance :
Excellent
Moisture Content :
≤1%
Type :
Ceramic Raw Materials
Colour :
white
Density :
64kg/m3
Packing :
Inside plasric bag
Thermal Conductivity :
0.09W/m·K
Fiber Diameter :
3-5um
Fire Resistance :
Non-combustible
Color :
White
Description
Product Description
Ceramic fiber board is a high-performance insulation product made of high-purity ceramic fiber by adding the right amount of organic matter and binder. It is flat, ceramic materials are evenly distributed, free of asbestos and environmental protection. ceramic fiber insulation boards solid texture, wind erosion resistance, excellent toughness and other advantages make it an ideal material for kilns, pipes and other insulation types of equipment. It has low thermal conductivity and low thermal storage, and no expansion during heating, which can reduce energy cost and cycle time, and protect the surface of refractory from thermal shock and chemical attack.
Product Advantage

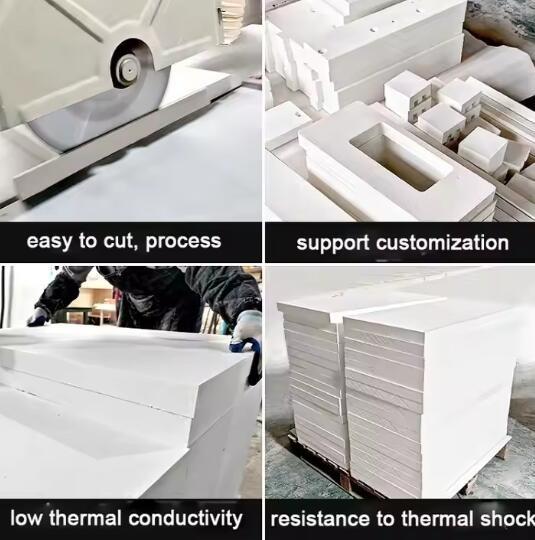

Fire resistant ceramic fiber board advantage:


1, with high temperature thermal conductivity, light weight, long life, tensile strength, good elasticity, non-toxic and so on.
2, high compressive strength, long service life;
3, low heat capacity, low thermal conductivity;
4, non-brittle material, good toughness;
5, the size of accurate, good flatness;
6, easy to install,
7, excellent anti-wind erosion performance;
8, continuous production, fiber distribution, performance and stability;
9, excellent sound and noise reduction performance.
Specification
Type
COM
ST
HP
HA
Zir-Alu
HZ
Classified Temp.
1100ºC
(1983ºF)
1260ºC
(2300ºF)
1260ºC
(2300ºF)
1360ºC
(2480ºF)
1400ºC
(2550ºF)
1430ºC
(2600ºF)
Working Temp.
<1000ºC
(2012ºF)
1050ºC
(1922ºF)
1100ºC
(2012ºF)
1200ºC
(2192ºF)
1200ºC
(1192ºF)
1350ºC
(2462ºF)
Color
white
white
white
white
white
white
Density(kg/m3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
Linear Shrinkage (%)
(24 hrs)
-3
(1000ºC/1832ºF)
-3
(1000ºC/1832ºF)
-3
(1100ºC/2012ºF)
-3
(1250ºC/2282ºF)
-3
(1000ºC/2012ºF)
-3
(1350ºC/2462ºF)



Thermal conductivity
(W/M.K)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
Compression Strength
(Mpa)
0.5
0.5
0.5
0.5
0.5
0.5

Chemical(%)
Al2O3
44
46
47-49
52-55
45-46
39-40
Al2O3+SiO2
96
97
99
99
-
-
Al2O3+SiO2+ZrO2
-
-
-
-
99
ZrO2
-
-
-
-
.5-7
15-17
Fe2O3
<1.2
<1.0
0.2
0.2
0.2
0.2
Na2O+K2O
≤0.5
≤0.5
0.2
0.2
0.2
0.2
Size(mm)
1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″)
20-50mm(1″/2″)thickness
