1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
1260 Refractory Ceramic Fiber Board Thermal Insulation Aluminum Silicate Board For Industrial Furnace
Specifications
Brand Name :
RONGSHENG
Model Number :
10101-52-7
Certification :
ISO9001
Place of Origin :
Henan, China
Fire Resistance :
Non-combustible
Type :
Various size high working temperature
Length :
3600-7200mm
Tempreture :
1260
Shape :
Ceramic Fiber Blanket
Chemical Content :
Al2O3+SiO2
Chemical Composition :
Al2O3-SiO2
Color :
White
Thermal Conductivity :
0.09-0.16W/m·K
Colour :
white
Bulk Density :
96-160kg/m3 or customized
Fiber Diameter :
5um
Compressive Strength :
0.08MPa
Temperature :
1260C
Package :
braided bag/carton
Description

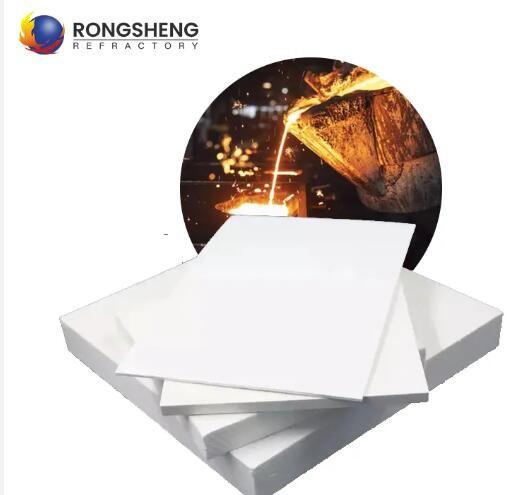

1260 refractory ceramic fiber board thermal insulation aluminum silicate board heat resistant material for industrial furnace

Product Description

Ceramic fiber board is a high-performance insulating product formed by ceramic fiber and adhesive in vacuum. It is flat, ceramic materials are evenly distributed, and has excellent heat insulation performance. Due to its low thermal conductivity and low heat storage, no inflation during heating can reduce energy cost and cycle time, and protect the refractory surface from thermal shock and chemical attack. Therefore, it is an ideal product for fire resistance, heat insulation and heat insulation.

Features

1.Low heat storage;
2.Resistant to Non-Ferrous Metals;
3.Excellent resistance to thermal shock and chemical attack;
4.Resists oxidation and reduction;
5.High mechanical strength at high temperature;
6.Can be machined, cut and shaped easily
7.High rigidity and light weight

Specification
Standard ceramic fiber blanket - working temperature 1050 ℃
High-alumina ceramic fiber blanket - working temperature 1260 ℃
Zirconia ceramic fiber blanket - working temperature 1350 ℃
Thickness 6-50mm
Type COM ST HP HA Zir-Alu HZ
Classified Temp. 1100ºC
(1983ºF)		 1260ºC
(2300ºF)		 1260ºC
(2300ºF)		 1360ºC
(2480ºF)		 1400ºC
(2550ºF)		 1430ºC
(2600ºF)
Working Temp. <1000ºC
(2012ºF)		 1050ºC
(1922ºF)		 1100ºC
(2012ºF)		 1200ºC
(2192ºF)		 1200ºC
(1192ºF)		 1350ºC
(2462ºF)
Color white white white white white white
Density(kg/m3) 260-320
(16-20lb/ft3)
Linear Shrinkage (%)(24 hrs) -3 (1000ºC/1832ºF)
Thermal conductivity(W/M.K) 0.085 (400ºC/752ºF)
0.132 (800ºC/1472ºF)
0.180 (1000ºC/2012ºF)
Compression Strength(Mpa) 0.5 0.5 0.5 0.5 0.5 0.5
Chemical(%) Al2O3 44 46 47-49 52-55 45-46 39-40

Al2O3

+SiO2

 96 97 99 99 - -

Al2O3

+SiO2

+ZrO2

 - - - - - 99
ZrO2 - - - - 5-7 15-17
Fe2O3 <1.2 <1.0 0.2 0.2 0.2 0.2

Na2O

+K2O

 ≤0.5 ≤0.5 0.2 0.2 0.2 0.2
Size(mm) 1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″)
20-50mm(1″/2″)thickness
Advantages
