Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
Specifications
Brand Name :
Kimpok
Model Number :
KP-HD803
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
RF Frequency :
300MHz~999MHz (optional)
Resolution :
HD1080P(1920*1080)
AV input :
HD
Video compression :
H.264/MPEG-4/MPEG-2
Weight :
485g
Dimension :
153*100*34mm
Description

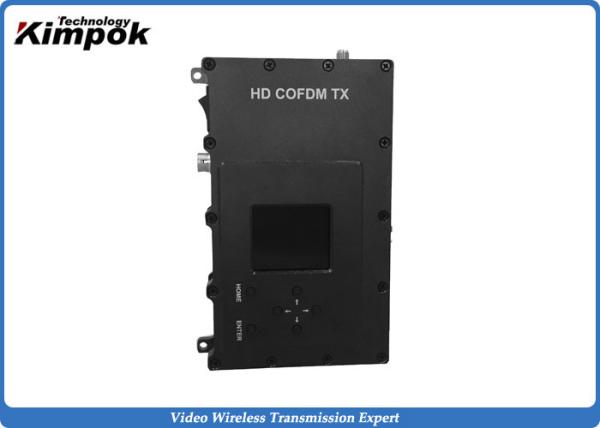

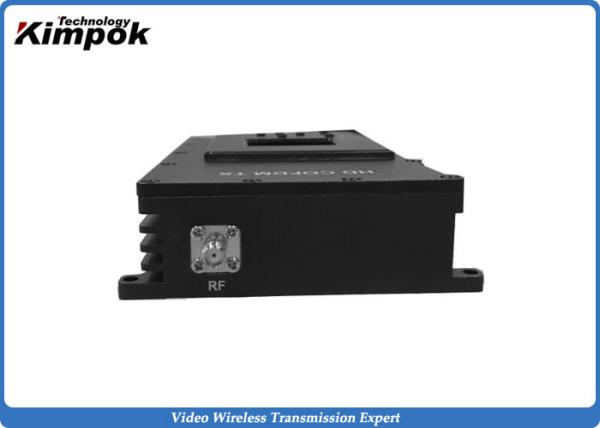

Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter​ with 3 Watt

UAV Video Transmitter Description:

KP-HD803 is FULL HD image transmission system equipment professional for UAVs, standard DVB-T modulation.The product use of advanced video processing technology and efficient encoding algorithm to improve the coding efficiency and reduce coding delay and increase the error rate, and then improve image quality. It can be the lowest bit rate to achieve the best quality of image.
Supports RF power 1-3 Watt (2K mode), HD AV Input. 300MHz~999MHz (optional). Its with LCD display Showing working status and parameters

Features:


1) Compact designed, lightweight;
2) Full hd resolution, low delay;
3) High performance, low cost
4) Special for UAV/Drones long range video communication;
5) Maximum rf output 3Watt,can support 40km LOS range.

Tx specifications:

Power supply DC 7-16V input/output
Power consumption 1-3W (optional)
Modulation DVB-T
Modulation type QPSK/16 QAM/64 QAM
Scrambling way Manual settings ON/OFF
RF power output 1-3Watt (2K mode)
RF bandwidth 8MHz
AV input HD
Resolution HD1080P(1920*1080), compatibility 1080P, 720P, 480P and standard resolution
Video compression H.264/MPEG-4/MPEG-2
Antenna output 50Ω, SMA or “N” type Connector
Working frequency 300MHz~999MHz (optional)
Step frequency 1K Steps
Guard interval(GI) 1/4, 1/8, 1/16, 1/32 (optional)
Code rate (CR) 1/2, 2/3, 3/4, 5/6, 7/8 (optional)
FFT 2K or 8K
MER >34dBm
LCD display Showing working status and parameters
Parameter setup Manual operation by buttons
Dimension 153*100*34mm
Weight 485g

Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt


Full HD Wireless Transmitter And Receiver , 1080P HD UAV Video Transmitter with 3 Watt
