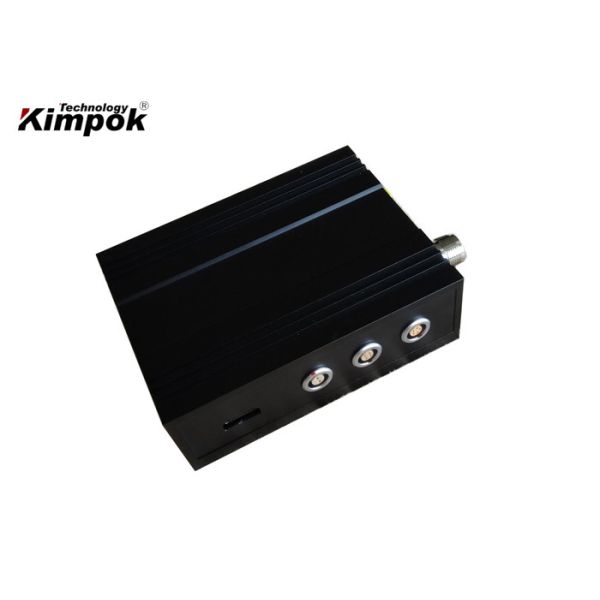

Mobile Microwave COFDM Wireless Transmitter Receiver Long Distance For Live Broadcast
Mobile Microwave COFDM Wireless Transmitter Receiver Long Distance For Live Broadcast
Mobile Microwave COFDM Wireless Transmitter Receiver Long Distance For Live Broadcast
Mobile Microwave COFDM Wireless Transmitter Receiver Long Distance For Live Broadcast
Specifications
Brand Name :
Kimpok
Model Number :
KP-HD105
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Video coding :
H.264
Video rate :
500kbps-16.68Mbps(autoadaptation)
Max speed rate :
450km/h
Dimension :
180*110*85mm(with dual V mounts)
Bandwidth :
4/8MHz(adjustable)
Weight :
1.6kg
Description

Mobile Microwave COFDM Wireless Transmitter Receiver Long Distance For Live Broadcast

Broadcastin SDI COFDM Transmitter Feature:

  • COFDM modulation, stability signal
  • HD-SDI/HD and BNC input
  • Bandwidth 2/2.5/4/8MHz adjustable
  • HD & composite video input
  • Balanced stereo audio input.
  • Dual V battery mounts
  • 1-8W rf power output adjustable
  • Live broadcasting ,low delay time

Specifications:

Power supply
DC Input DC11-16V
Working Current 1.9A@12V
Output Power 1~8Watt
Video transmission:
Frequency range Output

300-900MHz(optional),

1.0-1.4G/2.3-2.5G/4-4.4GHz(customized)
Modulation COFDM,2K ,QPSK
RF bandwidth 4/8MHz(adjustable)
RF Power output 1-8W(adjustable)
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
AV input BNC: D1 standard definition
HD: HD1080i/1080P, 720P, 576, 480
HD-SDI:HD1080i/1080P, 720P, 576, 480
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Audio transmission
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
Audio channel Stereo L/R audio channel
Standard SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Encoding
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution

Minimum 1280*720@50i

Maximum 1920×1080P/I@60hz
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Max speed rate 450km/h
Format YCbCr4:2:2
Working Environment
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Appearance
Dimension 180*110*85mm(with dual V mounts)
Weight 1.6kg

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.

Whatever your wireless surveillance application or budget, we can find the right solution for you.

Contact us! We can customize any solution to fit your requirements.
