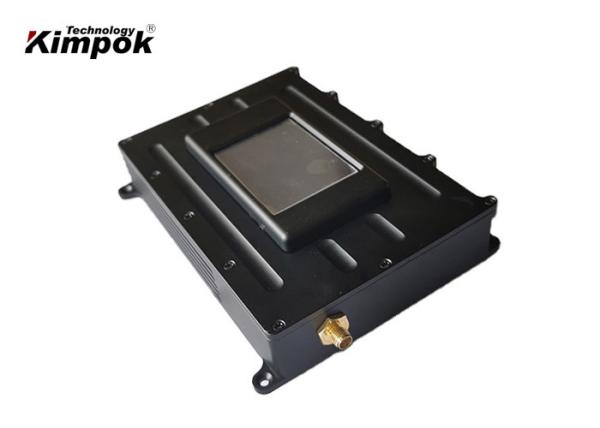

3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF
3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF
3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF
3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT103
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation :
COFDM
DC Input :
DC12V
Video coding :
H.264 / H.265
AV Interface :
HDMI/SDI (have to choose one)
Distance :
60km LOS distance(on air) 1-2km NLOS distance(Ground to ground)
Weight :
515g
Description

3 Watt HD UAV Video Transmitter Miniature COFDM Video Link UHF/VHF Digital

Description:

KP-HDT103 Such new design 1080P HD transmitter is a powerful HD transmit system,using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-hd digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment.Support full HD 1080P H.265 encoding format and HDMI/SDI; BNC two HD inputs, as well support stereo balance audio input and narrowband transmission system.


Features:

  1. Low delay,lightweight,live broadcast;
  2. Support Full- HD quality image;
  3. Support 1080i/1080P HD transission;
  4. COFDM modulation;
  5. Built-in with HDMI or HD-SDI interface(single selection);
  6. Support composite standard video and balanced audio input;
  7. All parameters can be adjusted by user;
  8. H.265 video coding

Specification:

Power section
DC Input DC11V~DC16V
Working Current ≤1.1A@DC12.5V
Transmitter section:
Frequency range Output 250MHz-320MHz330MHz- 450MHz / 1000MHz --4400MHz,or can be customized according to customer's request.
Modulation COFDM
RF bandwidth 4/8MHz(adjustable)
Power output 1-3W(adjustable),in 1dB step
SHG >52dBc
Encryption AES128/256bits
Constellation QPSK,16QAM,64QAM
FEC 1/2,2/3,3/4,5/6, 7/8
Guard Interval 1/32,1/16,1/8,1/4
Carrier 2K
Flatness Full band≤2dB,8MHz≤0.5dB
AV Interface HDMI/SDI(have to choose one)
CNR(weighting) 58dB
Sloping field SNR(unweighted) ≥50dB
Analog Audio
Balanced audio input range Vmax=±15V
Unbalanced audio input range Vmax=3Vpp
HD interface SDI/HDMI(single selection)
Encryption AES 128/265 bit / ALLTECH Basic scrambling
Standard

SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M
Input range 800±80(mV)
Versions HD 1.3
HDCP protocol Yes
Encoding support
AV rate 64, 96,112,128,160,192,224,256,320,384Kbps(adjustable)
Audio encoding mode MPEG1 Layer2
CBER <2.0E-4
Video resolution

Maximum 1920×1080P/I@ 60P
Video coding H.264
Video rate 500kbps-16.68Mbps(autoadaptation)
Format YCbCr4:2:2
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance

40~60km LOS distance(on air)

1-2km NLOS distance(Ground to ground)
Appearance characteristics
Dimension 167*90*25mm
Weight

515g

3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF

3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF

3 Watt HD UAV Video Transmitter Miniature COFDM Digital Video Link UHF/VHF

Kimpok is specialized in COFDM, TDD and Analog wireless video transmission products for over 10 years, including Wireless Video Transmitter, HD Video Wireless Transmitter and Receiver, quality UAV/UGV Wireless Video Transmitter, and CCTV Wireless Sender, products are applied widely among Public Security Bureaus, Forest Fire Prevention Departments, Maritime Bureaus, Oil Field, Construction Sites, Tunnels, UAV, UGV, Automobiles and so on.
