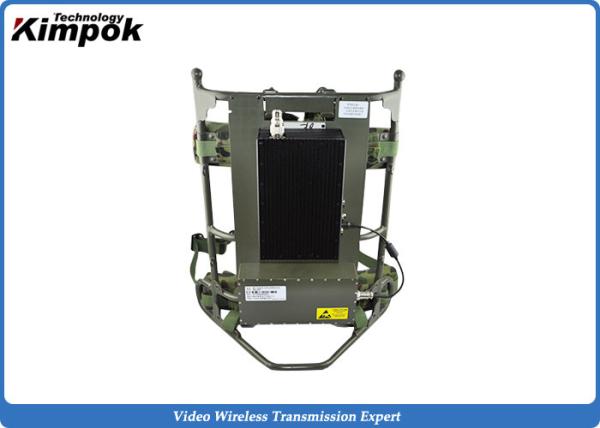

10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
Specifications
Brand Name :
Kimpok
Model Number :
KP-WVT10
Certification :
CE/FCC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T
Supply Ability :
1,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Frequency :
138-4400MHz (option),but only 100MHz space for user
RF Power :
10Watt (adjustable)
Power Supply :
DC11-14.5V/2.7A (aviation plug)
Distance :
Appr. 5km NLOS (for manpack)
Video Resolution :
standard 720P ,1280*720
Dimension :
200*130*60mm
Description


10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

Two-way Communication COFDM Transmitter:

KP-WVT10 system is new generation of broadcast-quality good resolution image transmission and walkie-talkie system. It adopts the current leading COFDM modulation technology and relative narrow-band frequency(2/2.5//4/8MHz), it has the strong anti-jamming capability, overcomes the reflection and cover caused by transmission multipath simulation technique and conventional modulation techniques, to realize high-speed photography and near real-time transmit high quality image in NLOS or complicated working conditions.Especial suitable for army training ,fire rescue, marine remote control security application.

Feature:

  • COFDM modulation,good stability.
  • H.264 video compression,DVD quality
  • Video and walkie-talkie transmission;
  • Super long range transmit distance.
  • Works well in NLOS & fast-moving conditions
  • LCD screen shows parameters and working status.
  • Dual aerials connectors.
  • Low delay


Specifiations:

Frequency 138-4400MHz (option),but only 100MHz space for user
RF power 10Watt (adjustable)
Power supply DC11-14.5V/2.7A (aviation plug)
Modulation COFDM 2K QPSK
RF Bandwidth 2/2.5/4/8MHz(adjustable)
FEC 1/2 2/3 3/4 7/8 (option)
Guard Interval 1/32 1/16 1/8 1/4(option)
Data Encryption AES 128/256 Bits
Max speed 450km/h
Video input BNC/RCA
Audio input standard Aviation plug, support two-way intercome
Video compression format H.264
Video Resolution standard 720P ,1280*720
RF Interface N (two aerial connectors)
Work environment -40℃~70℃
Transmission Distance

10-25KM NLOS

Case Material Aluminum black
Size 200*130*60mm
Weight 2.5kg


10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System

Walkie Talkie Transmission System​ Application:

10 Watt Manpack COFDM Video Transmitter H.264 Walkie - Talkie Transmission System
