Specifications
Brand Name :
Kimpok
Model Number :
KP-TS5000
Certification :
EC/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export packing standard
Modulation: :
COFDM
Frequency: :
300-800MHz(option), 12G/2.4G/5.8GHz(customized)
RF Output Power: :
2-5Watt (adjustable)
Bandwidth: :
1.25/2.5/6/7/8MHz(optional)
Size: :
180*100*60mm
Weight: :
1444g (net Weight)
Description

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

Introduction:

This is an exclusive design COFDM transmitter and receiver. Has a character of low power, small dimension on the transmitter, and we provide more adequate considerations to make it more intuitive and natural.Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation with 4 channel receiver, provide high quality of picture in revolution 720*576, short latency.

This special designed system is for UAV long range distance transmission , it is also popular to use in other fields for live broadcast video audio transmission.


Features:

  1. 2-5Watt RF power adjustable;
  2. Built-in with battery 2300mA ;
  3. More intuitive and natural with a coulobmeter;
  4. Popular with users, and was applied to any AV projects.

Transmitter parameters:

Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
RF output Power 2-5Watt(adjustable)
Voltage DC12V
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
Bandwidth 1.25/2.5/6/7/8MHz(optional)
Transfer rate 2/4/6/8Mbps(optional)
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Input 1 line PAL/NTSC analog video
Audio Input Analog stereo left and right channels
Video Compression H.264
Data encryption AES 265 bit / ALLTECH Basic scrambling
Flatness

≤2dB(within full frequency range) ,

≤0.5dB (within 8MHz)
Carrier 2K,8K
Video Signal 1Vp-p@75Ω,NTSC/PAL adaptive
Resolution 720×576(PAL) , 720×480(NTSC)
RF Interface N(F)
Video Format PAL/NTSC(self-adaption)
AV Interface BNC
Built-in battery 2300mA, 3Hrs
Work environment -30~70°
Distance 2-6km (on ground); 100km LOS (from air to ground)
Size 180*100*60mm
Weight 1444g(net weight)

Receiver parameters:

Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Memory 60G, 1way 48hours recording
LCD monitor 7inch or 9.5 inch
Receive sensitivity < -105dBm
RF Interface N(F)
Modulation COFDM
Power supply AC220V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Output 1 line PAL/NTSC analog video
Revolution 720×576(PAL) , 720×480(NTSC)
Lines of horizontal 625 or 525 Line
Audio Output Analog stereo left and right channels
Data encryption AES 265 bit / ALLTECH Basic scrambling
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70°
Size 370*490*220mm
Weiht 18kg

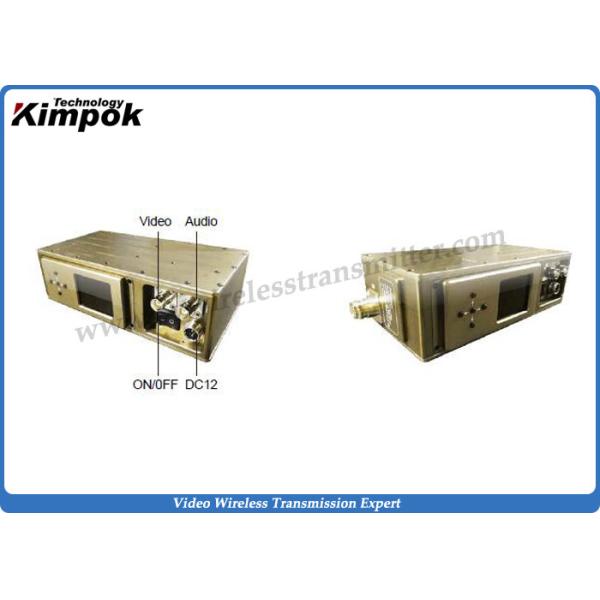

Transmitter picture:

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

Receiver picture:

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF

SD COFDM Video Transmitter and Receiver Analog Long Range Wireless CCTV Transmission 5W RF
