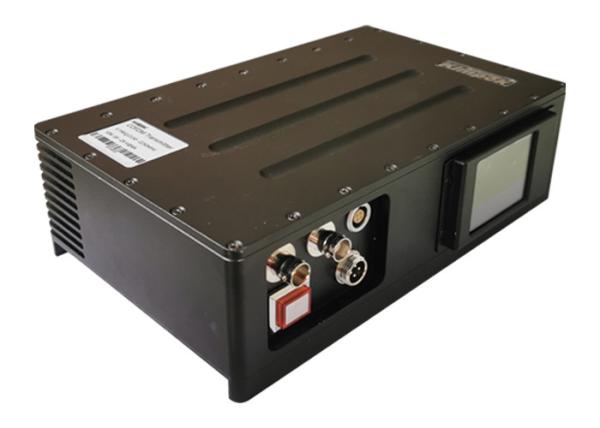

150KM LOS Long Range Digital Transmitter 500Mhz AV Wireless Transmitter 15Mbps

AV Wireless Transmitter Feature:

1. Modulation: COFDM 2K QPSK
2. Frequency: 300-800MHz(option), 12G/2.4G/5.8GHz(customized)
3. Voltage: DC11-14.5V
4. Current: 2.7A
5. RF Power Output: 10W
6. Distance: 150 Km LOS Distance (on Helicopter), 5-6km NLOS Distance(in City)
7. 10Watt rf power, strong penetration;
8. 300-800MHz, 2.3-2.7GHz etc., adjustable frequency;
9. Video + data simultaneously.

Introduction:

The device is our New Sole design COFDM transmitter and receiver KP-C10. Has a character of Walkie Talkie functio,long range remote control and more intuitive as well natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation, provide high quality of picture in revolution 720*576, short latency. Support NLOS and high speed mobile transmission.Support parameters adjusted by user.PAL/NTSC video format self- adaption and good anti-intereference.This special designed system is for long range distance for military use, it is also popular to use in other fields for live broadcast video audio transmission.

Tech Specification:

Transmitter parameters:

Receiver parameters:

AV Wireless Transmitter Application:

FAQ:

Q1: What can I buy from you?

COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.

Q2: Why should I choose you?

Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.

Q3: Do you have a minimum order quantity?

No MOQ limit, 1pc is acceptable.

Q4: What kind of product service can I have?

OEM & ODM service.

Q5: What is the product warranty?

We offer two-year-warranty and lifelong maintenance.

Q6: What is the average lead time?

5-7 working days for regular model, and 20-30 working days for customized model.

Q7: What kinds of payment methods do you accept?

We accept bank transfer, Western Union, PayPal, or cash payment.

Q8: Can you supply the relevant documentation?

Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.

Our Service:

· One-stop ODM/OEM solution;

· 24-hour technical support;

· Lifelong maintenance (Replacement parts will be charged after a year);

· Provide professional system design and construction;

· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
