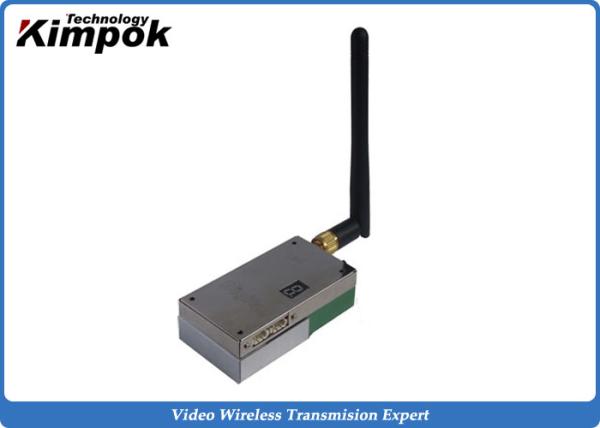

1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver
1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver
1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver
1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver
Specifications
Brand Name :
Kimpok
Model Number :
KP-FPV5812
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
3000pcs Per Month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Frequency :
5.8Ghz
Channels :
9 Channels
Transmit Power :
1200mW
Voltage :
DC-12V
Transmit Distance :
1000 ~ 2500m
Dimension :
70*38*18.5mm
Description


1200mW Analog Video Transmitter , 5.8Ghz Wireless CCTV Video Transmitter & Receiver

5.8Ghz Wireless Transmitter Description:

KP-FPV5812 wireless video transmission equipment is an excellent all aspects of performance are more varieties, and its large power margin, more suitable for complex physical environment.

It's not only a professional wireless CCTV transmitter and receiver for CCTV security projects but also used in the line of FPV system, UAV, RC airplanes/helicopters, Video and Data signals at the same time in cars of Unmanned Equipment.

Features:

  • Wireless transmission: no need to set up communications cable
  • Image, audio sync, color black and white compatible
  • Small size, light weight, easy to carry, good installation
  • Responsive, timely, send and receive real-time transmission
  • Using FM mode, anti-interference ability, good image quality
  • Highly integrated, stable and reliable transmission distance
  • DC power supply, easy to use.
  • Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.


Specification:

Voltage

DC 12V

Current

700mA

Frequency

5.8Ghz
Frequency Band 5.72 GHz, 5.74 GHz, 5.76 GHz, 5.78 GHz, 5.80 GHz, 5.82 GHz, 5.84 GHz, 5.86 GHz, 5.88 GHz

Number of channels

9CHs

Transmit Power

1200mW

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M 6.0M

Distance (Open environment)

1000m-2500m

Overall Configuration

Transmitter, receiver, AV cable, power supply, antenna

Temperature

-10℃ ~ +50℃

Transmitter Weight

65g

Receiver Weight

67g
Whole Set Weight 395g

Dimensions (L * W * H)

Transmitter: 70*38*18.5mm. Receiver:72*43*11mm

Box size (L * W * H)

245*160*65mm

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver

Our Service

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
