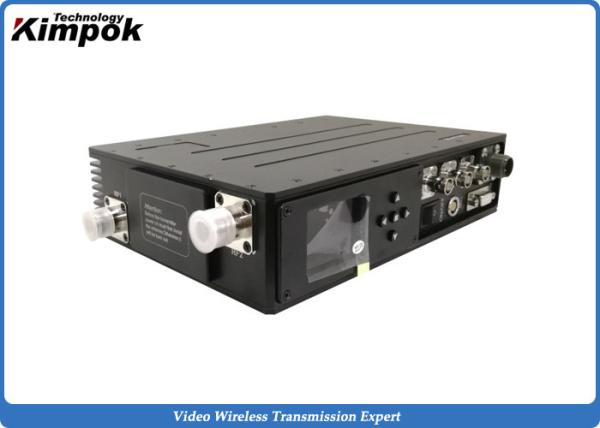

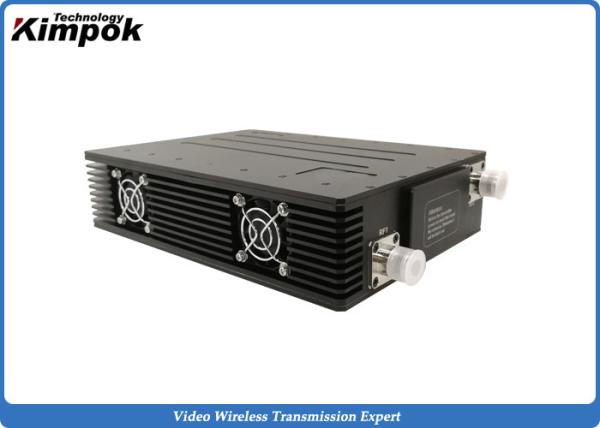

Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
Specifications
Brand Name :
Kimpok
Model Number :
KP-C10
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
A/V Interface :
BNC / RCA
Encryption :
AES 128 bit / ALLTECH Basic scrambling
Video rate :
15Mbps(MAX)
Video Compression :
MPEG-2 4:2:0 /MPEG-4 (optional)
Bandwidth :
2/2.5/4/8M(adjustable)
AV Interface :
BNC
Size :
200*130*60mm
Weight :
2.8kg
Description

Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt

Introduction:

The device is our New Sole design COFDM transmitter and receiver KP-C10. Has a character of Walkie Talkie functio,long range remote control and more intuitive as well natural. Use H.264 coding format and COFDM (coded orthogonal frequency division multiplexing) modulation. Provide high quality of picture in resolution 1280*720, short latency. Support NLOS and high speed mobile transmission.Support parameters adjusted by user. PAL/NTSC video format self- adaption and good anti-intereference.

This special designed system is for long range distance for military use, it is also popular to use in other fields for live broadcast video audio transmission.


Features:

  1. 10Watt rf power, strong penetration;
  2. 300-800MHz, 2.3-2.7GHz etc., adjustable frequency;
  3. Video + data simultaneously.

Tech Specification:

Transmitter parameters:

Frequeny/AV

300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)

can be adjustable by user,100MHz interval.
Frequeny/DATA 200-270MHz(adjustable),or other band
Modulation COFDM 2K QPSK
RF power output 10W
Voltage DC11-14.5V
Current 2.7A
Video rate 15Mbps(MAX)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Bandwidth 2/2.5/4/8M(adjustable)
A/V Interface BNC / RCA
Encryption AES 128 bit / ALLTECH Basic scrambling
Flatness

Full band≤2dB ,8MHz≤0.5dB
Carrier 2K,8K
SHG >52dBc
Video Signal 1Vp-p@75Ω,NTSC/PAL adaptive
CBER <2.0E-4
Video Compression MPEG-2 4:2:0 /MPEG-4 (optional)
Resolution 720×576(PAL) , 720×480(NTSC)
Video/image 720x576 @ 8MHz, 352x288 @ 1.25MH
RS232/RS485 control interface Standard RS232/RS485 level,9600,8,N,1
RS232/RS485 data interface Standard RS232/RS485 level ,support 1200~115200
Video Input 1Vp-p@75Ω,NTSC/PAL (autoadaptation)
Audio Input Analog stereo left and right channels
RF Interface N(type)
AV Interface BNC
Video decoding ISO/IEC13818-2 MPEG-2MP@ML
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Distance

150 km LOS distance (on helicopter),

5-6km NLOS distance(in city)
Material Type of Case Aluminum (black)
Size 200*130*60mm
Weight 2.8kg

Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt

Receiver parameters:

Frequeny/AV 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Frequeny/DATA 200-270MHz(adjustable)
Modulation COFDM 2K QPSK
Receive sensitivity -105dBm
Voltage DC12-14V
Constellation QPSK,16QAM,64QAM (optional)
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Impedance 50Ω
Carrier 2K,8K
FEC 1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Bandwidth 2/2.5/4/8M(adjustable)
Video Decoding ISO/IEC13818-2 MPEG-2MP@ML
AV output 2 Audio output+2Video input
Audio output mode Analog stereoStereo unbalanced 300/200 mV
Video resolution 720x576 @ 8MHz, 352x288 @ 1.25MHz
Video format PAL / NTSC (autoadaptation)
Audio output Analog stereo left and right channels
aspect ratio 4:3, 16:9
Encryption AES 128 bit / ALLTECH Basic scrambling
Carrier 2K,8K
Video Compression MPEG-2 4:2:0 /MPEG-4 (optional)
Resolution 720×576(PAL) , 720×480(NTSC)
RS232/RS485 control interface Standard RS232/RS485 level,9600,8,N,1
RS232/RS485 data interface Standard RS232/RS485 level ,support 1200~115200
RF Interface N(type)
AV Interface BNC
OperatingTemperature -25℃~55℃
Storage Temperature -40℃~70℃
Size 430*310*65mm(1U chassis)
Weight 3.8kg

Packaging Details

Accessories

2*antennas (customized); RF cables and mounted kits.

Style

Paper carton

Size

Undetermined

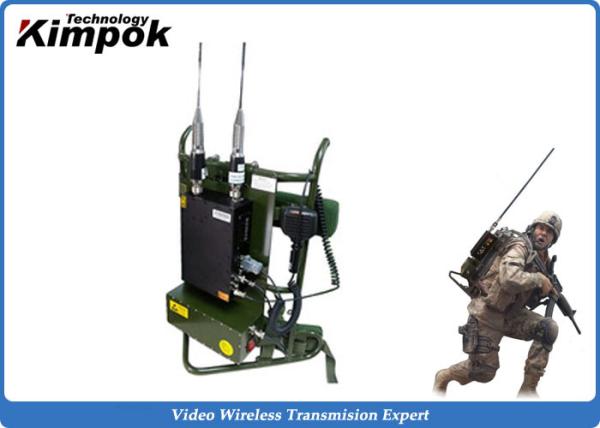

Digital Video Transmitter Application:

Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt

Military Backpack COFDM Wireless Transimtter 720P Wireless Video Audio Sender 10 Watt
