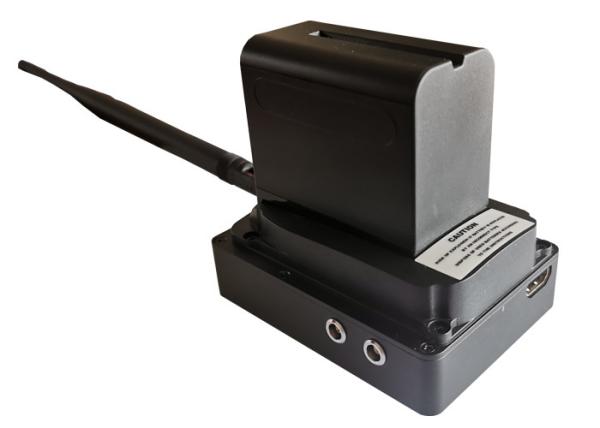

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT1W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiaiton
Payment Terms :
T/T, Western Union,PayPal
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export standard packing
Modulation :
COFDM
Bandwidth :
2/2.5/4/8MHz (adustable)
Frequency :
300-900MHz (optional)
Video port :
HDMI
Video Decoding :
H.264/H.265
Weight :
900g
Description

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground

Description:

KP-HDT1W is a micro new customized HD COFDM video transmitter,specially designed for UAV,UGV and body-worn use .It is a rugged,miniature,high definition digital video transmitter ideal for long range video and data control purpose. KP-HDT1W transmitter is in full HD resolution with HDMI input for HDMI camcorder connection, and data serial port(RS485/RS232/TTL) for one-way data control.

The increased compression and efficiency of the H.264/H.265 encoder offers users additional range with the added benefit of small size,low latency and low power consumption.In particular,COFDM provides robust,secure and reliable video transmission over long ranges.And its great security of the transmission can be ensured using the optional internal AES user defined encryption from end to end.

Features:

* Small size, lighter and low power consumption

* Full hd video resolution,H.264/H.265 compression

* COFDM modulation

* inbuilt with HDMI and data serial port

* Heat dissipation with aluminum case;

* Great security by AES user defined encryption

* Ideal for UAV/UGV and hidden mission use

* Low delay time;

Transmitter Specification:

Voltage DC12V
Power supply DC12V/600mA
AV input

HDMI: support

HD1080P/1080I,720P,576,480;
Data serial port RS485RS232/TTL ,one-way communication
Frequency 300-1500MHz (optional)
Bandwidth 2/2.5/4/8MHz(adjustable)
RF power 1Watt(30dBm)
Encryption AES -user defined password
Modulation COFDM,2K,QPSK
Constellation QPSK,16QAM,64QAM
Carrier 2K,8K
Flatness Full band≤2dB,8MHz≤0.5dB
FEC 1/2,2/3,3/4,7/8
Guard Interval 1/32,1/16,1/8,1/4
Video Compression H.265/H.264/MPEG-4
Resolution 720P ,1080i/1080P@60fps
Parameter control method User can Set up the related parameters by the control buttons
Built-in small LCD display parameters,but will be shut up in 3 seconds after on.
Power switch ON/OFF simple operation
CNR(weighting) ≥58 dB
Sloping field SNR ≥50 dB
RF Interface SMA
Video formats PAL/NTSC(self-adaption)
Low latency 200ms
Working temperature -20℃～75℃
Dimension 100*60*16mm
Weight 133g(without battery)

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground

Receiver specificatations:

Frequency 300-900MHz(option)
Bandwidth 2/2.5/4/8MHz (adustable)
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Impedance 50Ω
RF Interface N female
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K,8K
Video Decoding ISO/IEC13818-2 MPEG-2MP@ML
Aspect Ratio 4:3, 16:9
Resolution 1080P; 720P
Audio Output Analog stereo left and right channels
Lines of horizontal 625 or 525 Line
Decryption AES256 bit / ALLTECH Basic scrambling
Working Voltage AC220V / DC12V
Temperature -30~70°
Dimension 430*310*65mm (1U Aluminium alloy box)
Weight 1.5 kg

Receiver picture:

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground

Typical application:

UAV shooting, Police/military secret application

Tactical system, hidden mission

UGV, Surveillance&public safety

Mini UAV Video Transmitter with battery 1 watt RF Power for 20km from Air to Ground
