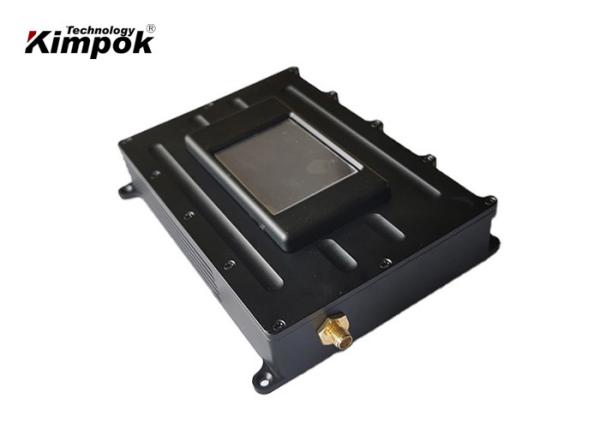

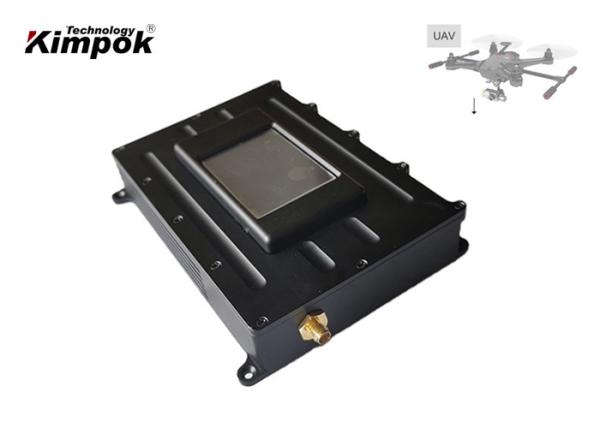

20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT2W
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Resolution :
1980*1080P
Video Compression :
H.265
RF output Power :
2 watt
Encryption :
AES128/256bits
Voltage :
DC 12V
Size :
132*90*26mm
Description

20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data

Description:

KP-HDT2W is an ultra-thin, ultra-small wireless communication device with integrated OLED display control interface with high brightness and low power consumption. Itscan transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting. KP-HDT2W widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Features:

● COFDM modulation technology ensure the stability of signal

● Support FULL HD quality,1080i/P@30fps;

● Built-in with HD and BNC ports;

● Provide AES128 encryption for video safety.

● It will be HD1080P/i transmission when the RF bandwidth is 4/8MHz.;

● 2-5W rf power adjustable

● Low delay time

● With four holes at the bottom of the transmitter for fixed installation

● Widely used in helicopter shooting, Live broadcast and etc…

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 2 watt
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.265
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 20km from UAV to ground station; 1-4km from ground to ground
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 132*90*26mm
Weight 420g
Box colour Black
Antenna port N type
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data
20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data

20km UAV Video Link 2 Watt HD COFDM Wireless Video Transmitter Data

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
