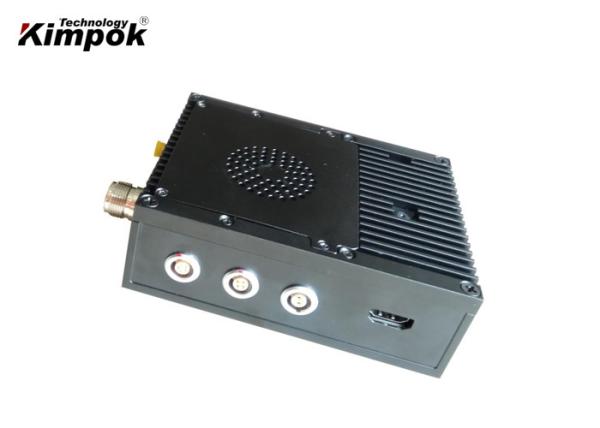

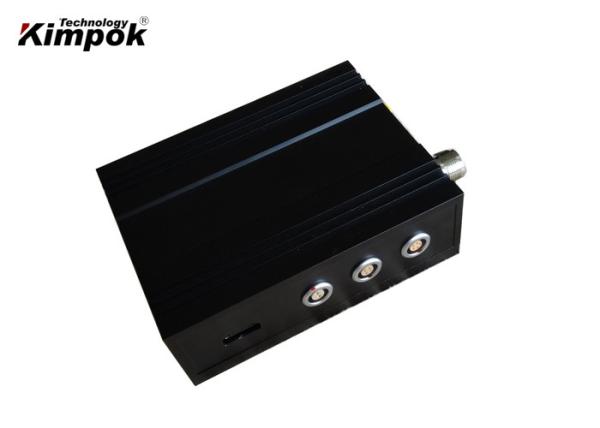

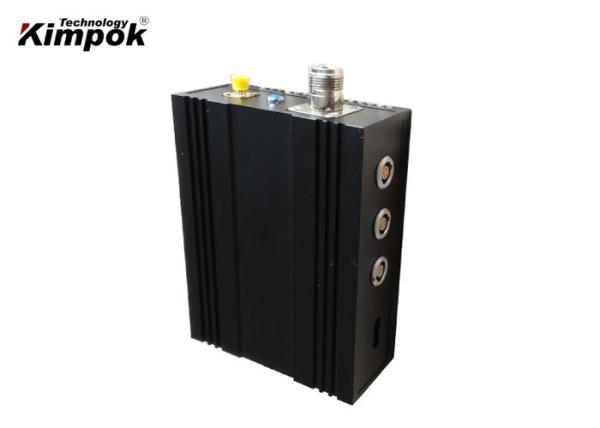

Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HD5000LW
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3,000pcs per month
Delivery Time :
3-7 days
Packaging Details :
Export standard packing
Size :
130*100*43mm
Video Compression :
H.265
RF output Power :
5 watt
Encryption :
AES128/256bits
Voltage :
DC 12V
Weight :
600g
Description

Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range

Description:

KP-HD5000LW is a video transmitter specially developed for long-distance UAV image transmission, which can transmit images in real time and stably under high-speed movement.
It has ultra-low delay and ultra-light volume, which can realize the air-to-ground transmission distance of 100km.
It is also suitable for image transmission with the ground, and can be used in the fields of public security investigation, military operations, fire special robots, etc.

Features:

◆ Low delay,lightweight,live broadcast;
◆ Support Full- HD quality image;
◆ Support 1080i/1080P HD transission;
◆ COFDM modulation;
◆ Built-in with HDM or HD-SDI interface (Single selection);
◆ All parameters can be adjusted by user;

Specification:

Frequency 300-900Mhz (option), or other band customized
Modulation COFDM
Consumption <40W
Encryption AES 128 bits
Constellation QPSK(4QAM),16QAM,64QAM
FEC 1/2 2/3 3/4 5/6 7/8
Guard Interval 1/32 1/16 1/8 1/4
Carrier 2K,8K
Bandwidth 2/3/4/6/7/8MHz (option)
Video rate 200kps~20000kps (adjustable)
RF power 5 watt
Video input HDMI,CVBS,AHD,SDI (option)
Video coding H.265
Video resolution 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL
Transmission distance 100km from UAV to ground station; 1-3km NLOS from ground to ground
Working voltage DC12V
Working Temperature -20℃ -- +55℃
Dimension 130*100*43mm
Weight 600g
Box colour Black
Antenna port N type
Modulation:
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range
Lightweight 100km HD UAV Video Link 5 Watt COFDM Wireless Image Transmission Long Range

Our Service:

1. One-stop ODM/OEM solution;
2. 24-hour technical support;
3. Lifetime maintenance (Replacement parts will be charged after a year);
4. Provide professional system design and construction;
5. You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 1998, we are the source.
Whatever your wireless surveillance application or budget, we can find the right solution for you.
Contact us! We can customize any solution to fit your requirements.
